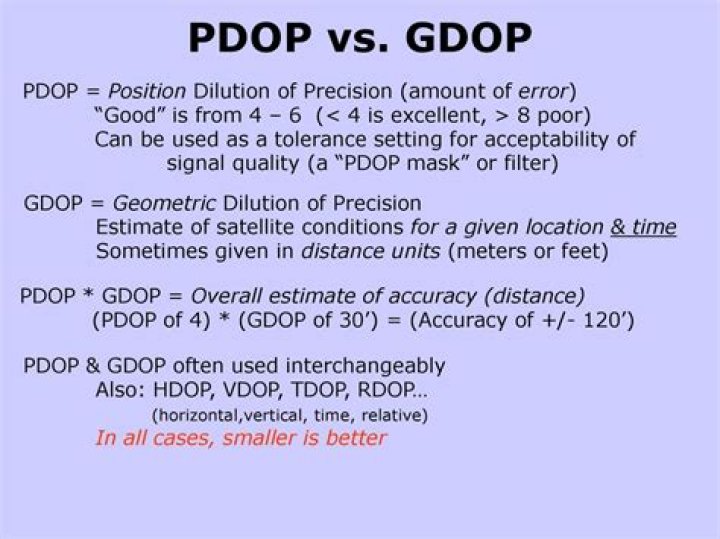

GDOP (geometric dilution of precision) or PDOP (position dilution of precision) describes the error caused by the relative position of the GPS satellites. But if the satellites are physically close together, then you have poor GDOP. This lowers the quality of your GPS positioning potentially by meters.
What’s the difference between PDOP Hdop and VDOP?
DOP stands for Dilution of Precision. Thus, PDOP is Position of DOP and can be thought of as 3D positioning or the mean of DOP, and most often referred to in GPS; HDOP is Horizontal of DOP; VDOP is Vertical of DOP. GPS and GNSS receivers communicate with the satellites above to triangulate our position.
What is a good Hdop value?
HDOP values are typically between 1 and 2. VDOP values are larger than the HDOP indicating that vertical position errors are larger than horizontal errors.
What is meant by dilution of precision?
Dilution of precision (DOP), or geometric dilution of precision (GDOP), is a term used in satellite navigation and geomatics engineering to specify the error propagation as a mathematical effect of navigation satellite geometry on positional measurement precision.
Why is Pdop important?
Evaluation of Position Dilution of Precision (PDOP) is important for the optimum selection of visible satellites of an individual or combined constellation to obtain good accuracy in 3-dimensioanl (3d) position fix.
How accurate is the DGPS in position fixing?
A Differential Global Positioning System (DGPS) is an enhancement to the Global Positioning System (GPS) which provides improved location accuracy, in the range of operations of each system, from the 15-metre (49 ft) nominal GPS accuracy to about 1–3 centimetres (0.39–1.18 in) in case of the best implementations.
What does high Pdop mean?
The Position Dilution Of Precision (PDOP) provides a measure of the prevailing satellite geometry. Low PDOP values, in the range of 4.0 or less, indicate good satellite geometry, whereas a PDOP greater than 7.0 indicates that satellite geometry is weak.
What is high GPS Hdop?
High GPS HDOP : the GPS’s HDOP value (a measure of the position accuracy) is above 2.0 and the vehicle is in a flight mode that requires GPS and/or the cylindrical fence is enabled. Alternatively the check can be relaxed by increasing the GPS_HDOP_GOOD parameter to 2.2 or 2.5.
How is Pdop calculated?
PDOP is the r.s.s. of the reciprocals of the altitudes to two of the sides (the unit vectors). Figure 4 shows the construction. In this case it can be geometrically shown that PDOP = V%sin 0. Equation (2) specifies 4 equations.
Why do you need 4 satellites for GPS?
You need four satellites because each data from one satellite put you in a sphere around the satellite. By computing the intersections you can narrow the possibilities to a single point. Three satellites intersection places you on two possible points. The last satellite give you the exact location.
What is gdgdop and PDOP in GPS?
GDOP (geometric dilution of precision) or PDOP (position dilution of precision) describes the error caused by the relative position of the GPS satellites. Basically, the more signals a GPS receiver can “see” (spread apart versus close together), the more precise it can be.
What is the difference between TDOP and VDOP?
DOP can be expressed as a number of separate measurements: HDOP – horizontal dilution of precision. VDOP – vertical dilution of precision. PDOP – position (3D) dilution of precision. TDOP – time dilution of precision.
What is PDOP (position dilution of precision)?
PDOP – Position Dilution of Precision. Complex maths derives a simple, single number for each kind of DOP. If that number is less than 1.0 then that’s “ideal” but even less than 2 is still “excellent”. There are 4 kinds of DOP: Geometric or Position (3D) dilution of precision (GDOP or PDOP – 3D); Horizontal dilution of precision (HDOP);
What is the difference between a good and bad GDOP?
From the observer’s point of view, if the satellites are spread apart in the sky, then the GPS receiver has a good GDOP. But if the satellites are physically close together, then you have poor GDOP.
