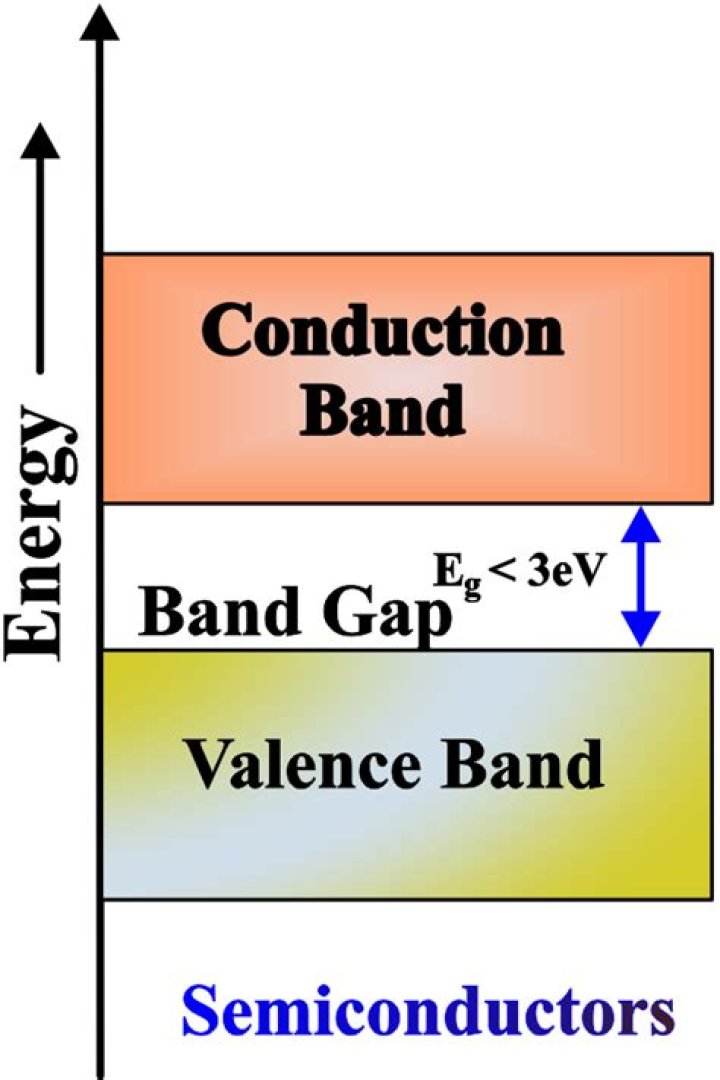

The band gap of a semiconductor is the minimum energy required to excite an electron that is stuck in its bound state into a free state where it can participate in conduction. The band structure of a semiconductor gives the energy of the electrons on the y-axis and is called a “band diagram”.
How is band gap energy calculated?
(hv) can be calculated form wavelength using: (hv = 1240/wavelength);Extrapolating the straight line portion of the curves to zero absorption coefficient value gives the energy band gap value.
Which semiconductor diode is used for determination of energy gap?
P-N Junction Diode
Experimental Training Board has been designed specifically for Determination of Energy Band Gap in Semiconductor (P-N Junction Diode) using Temperature dependent of reverse saturation current. Objective: 01. To draw the characteristics of a P-N junction Diode for reverse saturation current and temperature.
How do I know my band gap?
If the momentum of the lowest energy state in the conduction band and the highest energy state of the valence band of a material are the same, the material has a direct bandgap. If they are not the same, then the material has an indirect band gap.
What is meant by band gap energy?
Definition of bandgap : the difference in energy between the valence band and the conduction band of a solid material (such as an insulator or semiconductor) that consists of the range of energy values forbidden to electrons in the material.
How energy bands are formed in semiconductor?
In atoms, electrons are filled in respective energy orbits following Pauli’s exclusion principle. Thereby forming energy continuum called energy bands. This theory helps to visualise the difference between conductor, semiconductors and insulator by plotting available energies for an electron in a material.
How is band gap calculated by UV visible spectrum?
Calculation Tutorial:
- STEP1: Open the absorption graph of the material, which is obtained from the UV Vis spectroscopy.
- STEP2: Now zoom on the area for which you want to calculate the band gap and note down the wavelength (λ) at which absorption peak is shown.
- STEP3: Now enter the measured wavelength value (eg.
What determines the band gap?
The material’s band gap is determined by its molecular structure; the periodic, crystalline atomic structure of semiconductors gives their valence electrons the ability to become conductive at certain temperatures. When an electron becomes conductive, a hole is left behind.
What is band gap energy of pn junction diode?
The band gap energy of a junction diode is defined as the energy difference between the valence band to the conduction band.
How do you know if a semiconductor is direct band gap or indirect band gap?
If both the band edges are at the same k-point of the Brillouin zone, the band gap is direct. If these differ by a finite wave vector, the band gap is indirect.
What is the role of energy gap in semiconductor?
The energy gap is defined as the energy difference between the conduction band and the valence band. The energy gap provides the energy which is required to promote a valence electron, attached to an atom. The electron becomes a conduction electron. It can move freely within the entire crystal lattice.
What is the band gap of a semiconductor diode?
Band Gap in a Semiconductor Diode. The band gap is one of the most important characteristics in a semicon- ductor. It is the width of this energy gap that makes a semiconductor a semiconductor. In this experiment you will use the temperature-voltage curve of a diode under constant current to determine the band gap for the diode material.[1]
What is the relationship between band gap and intrinsic conduction?
A low band gap implies higher intrinsic conduction, and a high band gap implies a larger possible photon energyassociated with a transition across the gap in light emitting diodes. Band gaps in electron voltsare given for a few semiconductor materials in the table below.
What is a band gap?
Introduction Experimental Setup In solid-state physics, a band gap, also called an energy The device used in this experiment was analog lab. gap or band gap, is an energy range in a solid where no Voltage generator, resistance of 390 Volt, voltmeter, ammeter, electron states can exist.
What is the band gap in EV GaSb in InP?
Material Band gap in eV GaSb 0.7 Si 1.11 InP 1.35 GaAs 1.43
