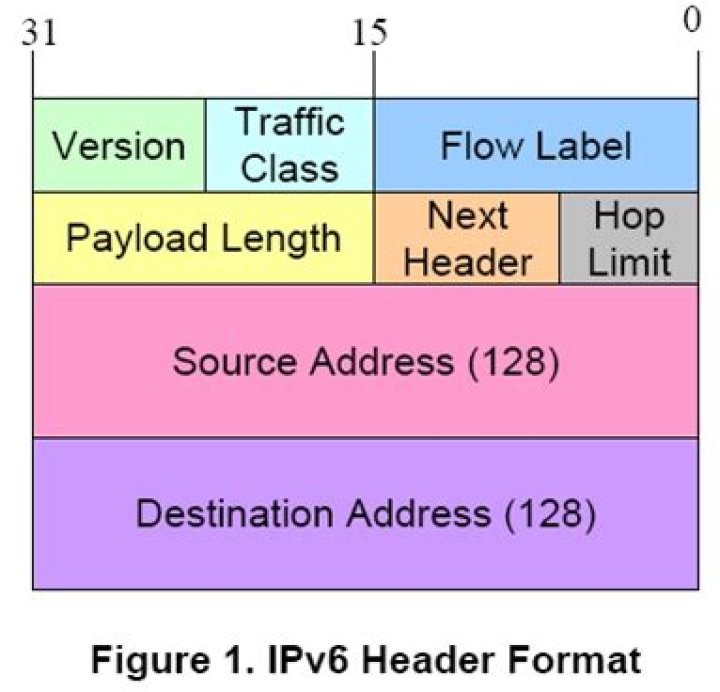

IPV6 header format is of 40 bytes in length, contains information essential to routing and delivery, consist of 8 fields, Version, Traffic Class, Flow Label, Payload length, next header, HOP limit, Source address and destination address, where each has its own features and provides essential data required to transmit …
How do you simplify IPv6 addresses?
To compress or shorten the IPv6 address, perform the following steps.
- Open the tool: IPv6 Compression & Shortener Tool.
- Enter an IPv6 address.
- After entering, click on the “Compress IPv6” button.
- The tool will process your request and give you the compressed IPv6 address 1234:fd2:5621:1:89::4500 .
How is IPv6 header length calculated?
The size of the IPv6 header is fixed at 40 bytes – though as you know there may be extensions that follow the initial IPv6 header that aren’t part of the transport layer datagram. To determine whether the IPv6 header is followed by header extensions, check the ‘next header’ field.
What are the main features of IPv6 header format?
The IPv6 header has a fixed header and zero or more optional (extended) headers. All necessary information necessary for the router is stored in a fixed header. The extended header contains optional information to help the router understand how to handle packets/flows.
What is IPv4 header format?
IPV4 header format is 20 to 60 bytes in length. It contains information need for routing and delivery. It consists of 13 fields such as Version, Header length, total distance, identification, flags, checksum, source IP address, destination IP address. It provides essential data need to transmit the data.
What is between IPv4 and IPv6 packet format explain header format of IPv4 and IPv6?
Packet Fragmentation: In IPv4, fragmentation is done by sender and forwarding routers. Header Length: The header length of 20 bytes in IPv4 whereas the header length is 40 bytes in IPv6. Checksum Field: IPv4 uses the checksum field in the header format for handling errors whereas the IPv6 doesn’t have this filed.
What are the IPv6 address types?
There are three major categories of IPv6 addresses:
- Unicast—For a single interface.
- Multicast—For a set of interfaces on the same physical medium. A packet is sent to all interfaces associated with the address.
- Anycast—For a set of interfaces on different physical media.
Which IPv6 address represents the most compressed form of the IPv6 address?
Explanation: The IPv6 address 2001:0000:0000:abcd:0000:0000:0000:0001 in its most compressed format would be 2001:0:0:abcd::1.
Which of IPv4 and IPv6 has a fixed header size?
The IPv4 header’s total length comprises a minimum of 20 octets (8 bits per octet), or five 32-bit words. The IPv6 header, as Figure B shows, has only 8 fields with a fixed length of 40 octets. The Ver (version) field remains in IPv6. In IPv6 the version field’s number is 6, and in IPv4 its number is 4.
What are the different types of IPv6 address types & formats?
The three types of IPv6 addresses are: unicast, anycast, and multicast….IPv6 Addressing
- Unicast addresses identify a single interface.
- Anycast addresses identify a set of interfaces in such a way that a packet sent to an anycast address is delivered to a member of the set.
What is the purpose of each of IPv6 header types?
IPv6 headers have one Fixed Header and zero or more Optional (Extension) Headers. All the necessary information that is essential for a router is kept in the Fixed Header. The Extension Header contains optional information that helps routers to understand how to handle a packet/flow.
What is UDP header format?
The UDP datagram header consists of 4 fields, each of which is 2 bytes (16 bits). The data section follows the header and is the payload data carried for the application. The use of the checksum and source port fields is optional in IPv4 (pink background in table). In IPv6 only the source port field is optional.
