The beam solid angle can be approximated for antennas with one narrow major lobe and very negligible minor lobes by simply multiplying the half-power beamwidths (in radians) in two perpendicular planes.
How do you find a solid angle?

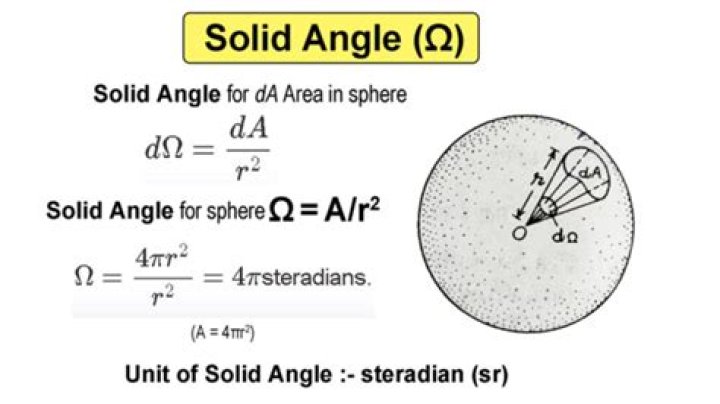

The solid angle is defined Ω = (S/r²). This defines the solid angle in steradians. If the surface covers the entire sphere then the number of steradians is 4π.
What is 2 pi Steradian?
It is used in three-dimensional geometry, and is analogous to the radian, which quantifies planar angles. Whereas an angle in radians, projected onto a circle, gives a length on the circumference, a solid angle in steradians, projected onto a sphere, gives an area on the surface….
| Steradian | |
|---|---|
| SI base units | 1 m2/m2 |
How do you calculate steradians?
A steradian is defined as the solid angle which, having its vertex at the center of the sphere, cuts off an area equal to the square of its radius. The number of steradians in a beam is equal to the projected area divided by the square of the distance.
What is beam angle?
The beam angle of a lamp is the angle at which the light is distributed or emitted. Lamps such as Halogens (and some LEDs) come in a variety of angles from, 4 degree to 60 degree with some of the larger halogen lamps up to 120 degree. These are typical beam angles spread abbreviations.
What is Radian and steradian in antenna?
Antennas – Pattern Solid Angle. A radian is defined with the aid of Figure a). It is the angle subtended by an arc along the perimeter of the circle with length equal to the radius. A steradian may be defined using Figure (b). Here, one steradian (sr) is subtended by an area r2 at the surface of a sphere of radius r.
What is steradian formula?
A steradian can be defined as the solid angle subtended at the center of a unit sphere by a unit area on its surface. For a general sphere of radius r, any portion of its surface with area A = r2 subtends one steradian at its center. sr is the unit, steradian.
How do you find the solid angle of a steradian?
The solid angle, Ω, in steradians, is equal to the spherical surface area, A, divided by the square of the radius, r.
How many steradians are in a circle?
The steradian (symbolized sr) is the Standard International (SI) unit of solid angular measure. There are 4 pi, or approximately 12.5664, steradians in a complete sphere.
How do you find the angle of a beam?
In other words, we find the center of the beam and take an intensity measurement. We then move to the side of the beam until the intensity is 50% of the initial reading. That angle is the half-maximum-angle. We then multiply that half-angle by two to get the Full Width Half Maximum Angle (FWHM).
What is a 25 degree beam angle?
spot
A narrow beam angle of 25 degrees is known as a spot. Wider beam angles of 60 degrees are known as as flood and even wider beams are known as wide flood beams.
What is the solid angle of the complement of the cone?
When θ = π 2, the spherical cap becomes a hemisphere having a solid angle 2 π . The solid angle of the complement of the cone is: This is also the solid angle of the part of the celestial sphere that an astronomical observer positioned at latitude θ can see as the earth rotates.
What is the beam area of a sphere?
Beam area or beam solid angle (Ω A):In polar two dimensional coordinates an incremental area dA on the surface of a sphere is the product of the length rdθ in the θ direction and rsinθdφ in the φ direction as shown in below figure.
What is the definition of a solid angle in physics?
That is, it is a measure of how large the object appears to an observer looking from that point. The point from which the object is viewed is called the apex of the solid angle, and the object is said to subtend its solid angle from that point.
How do you find the angle subtended by a cone?
The solid angle subtended by a segment of a spherical cap cut by a plane at angle γ from the cone’s axis and passing through the cone’s apex can be calculated by the formula: For example, if γ =- θ, then the formula reduces to the spherical cap formula above: the first term becomes π, and the second π cos θ .
