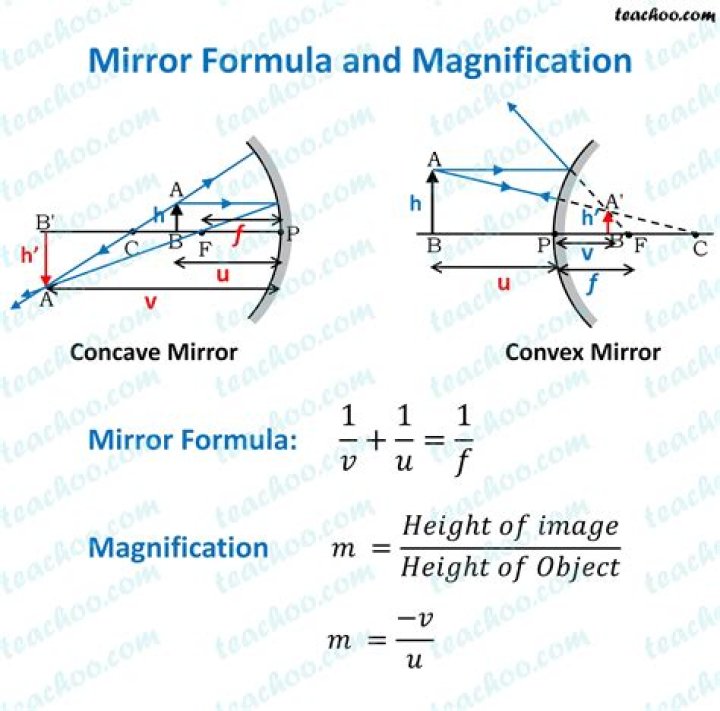

Linear magnification and the mirror formula Magnification= Image size/ Object size. Similarly, it can be expressed as the ratio of the distance of the image to the distance v of object u from the mirror.
What is the magnification of concave and convex mirror?
Magnification of a convex mirror is always positive, but that of a concave mirror may be both positive or negative.
What is the formula of magnification?
Let’s explore the magnification formula (M= v/u) for lenses and see how to find the image height and its nature (whether it’s real or virtual).
Which is correct equation of magnification for mirror?
The mirror equation 1v+1u=1f 1 v + 1 u = 1 f holds good for concave mirrors as well as convex mirrors.
What is the magnification formula 1?
Magnification (m) = h/h’ And h’ is the image height and h is the object height.
What is the magnification formula quizlet?
What is the magnification formula? magnification = image size / actual size.
What is the magnification Formula 1?
An object’s magnification is generally given by the equation M = (hi/ho) = -(di/do), where M = magnification, hi = image height, ho = object height, and di and do = image and object distance.
What is the magnification of a concave lens?
Concave lenses always form virtual images, so magnification produced by a concave lens is always positive. A concave lens always forms the image smaller than the object, so |m|<1.
What is magnification in mirror?
Magnification of mirrors Magnification is the increase in the image size produced by spherical mirrors with respect to the object size. It is the ratio of the height of the image to the height of the object and is denoted as m. The magnification, m produced by a spherical mirror can be expressed as: m=hh.
What is the magnification for convex mirror?
As the object will get closer to the mirror the image will get bigger and bigger but it will not get bigger than the original object. So, the image formed in a convex mirror is always virtual and diminished. So, the magnification of a convex mirror is always less than 1.
How do you solve for the magnification factor?
Therefore, the ratio of the sides are equal, i.e Image Size/Object Size = SID/SOD. You can see that this is our definition of magnification, so the magnification=SID/SOD.
What is the focal point of a concave mirror?
A concave mirror, or converging mirror, has a reflecting surface that bulges inward (away from the incident light). Concave mirrors reflect light inward to one focal point.They are used to focus light.
What are the characteristics of a convex mirror?
Convex mirrors. A convex mirror diagram showing the focus, focal length, centre of curvature, principal axis, etc. A convex mirror, diverging mirror, or fish eye mirror is a curved mirror in which the reflective surface bulges toward the light source. Convex mirrors reflect light outwards, therefore they are not used to focus light.
What is the difference between concave and convex?
The major difference between concave and convex lenses lies in the fact that concave lenses are thicker at the edges and convex lenses are thicker in the middle. These distinctions in shape result in the differences in which light rays bend when striking the lenses.
What is an example of a convex mirror?
The most commonly seen example of a convex mirror is the side view mirror on a car. Convex mirrors are seen in dome mirrors found in offices and stores for security and anti-theft purposes.
