What is the internal architecture of 8086?

8086 provides the programmer with 14 internal registers, each 16 bits or 2 Bytes wide. Memory segmentation: To increase execution speed and fetching speed, 8086 segments the memory. It’s 20 bit address bus can address 1MB of memory, it segments it into 16 64kB segments.

What are the internal operations of 8086 microprocessor?

8086 has two blocks BIU and EU. The BIU performs all bus operations such as instruction fetching, reading and writing operands for memory and calculating the addresses of the memory operands. The instruction bytes are transferred to the instruction queue. EU executes instructions from the instruction system byte queue.

How many ground pins do we have in 8086 pin diagram?

This pin is used to receive an interrupt request signal. It is a type of maskable interrupt. This is used for Non-Maskable Interrupt Request. There are two ground pins in the 8086, pin 1 and pin 20.

What is the use of a test pin in 8086?

It is an input pin and is only used by the wait instruction. The 8086 enter a wait state after execution of the wait instruction until a low is seen on the test pin. If the TEST pin is Low, execution continues otherwise the processor waits in an “idle” state.

How many pins are there in 8086 microprocessor?

40 pin
Intel 8086 is a 16-bit HMOS microprocessor. It is available in 40 pin DIP chip. It uses a 5V DC supply for its operation. The 8086 uses 20-line address bus….Pin diagram of 8086 microprocessor.

What is internal architecture?

Interior architecture is the design of a building or shelter from inside out, or the design of a new interior for a type of home that can be fixed. the art and science of designing and erecting buildings and their interiors, along with other related physical features, by a licensed architect.

How many pin IC 8086 is?

Intel 8086 is a 16-bit HMOS microprocessor. It is available in 40 pin DIP chip….Pin diagram of 8086 microprocessor.

What are different groups of internal registers in 8086 microprocessor?

The 8086 has four groups of the user accessible internal registers. They are the instruction pointer, four data registers, four pointer and index register, four segment registers.

Which are the pin 16 to pin number pin 2 in 8086?

AD0 – AD15 – Pin number 2 to 16 and 39 – These are the multiplexed address and data bus. We know that the 8086 microprocessor has 20-bit address bus and 16-bit data bus. So, the 16 lines of the address and data bus are multiplexed together so as to reduce the number of lines inside the IC.

Why are there 2 ground pins in 8086?

8086 microprocessor has 2 GND pins as circuit complexity demands a large amount of current flowing through the circuits, and multiple grounds help in dissipating the accumulated heat, etc.

What are pins in microprocessor?

The 40 pins of the microprocessor can be divided into six groups such as address bus, data bus, control signals & status signals; power supply & frequency, externally started signals and serial input/output ports.

What is the function of test pin?

TEST pin is examined by the “WAIT” instruction. If the TEST pin is Low, execution continues. Otherwise the processor waits in an “idle” state. This input is synchronized internally during each clock cycle on the leading edge of CLK.

What is the pin level diagram of 8086 microprocessor?

The Intel 8086 is 40 pin DIP Microprocessor. Here we will see the actual pin level diagram of 8086 MPU. 8086 was the first 16-bit microprocessor available in 40-pin DIP (Dual Inline Package) chip.

Is 8086 a 40-pin DIP microprocessor?

The Intel 8086 is 40 pin DIP Microprocessor. Here we will see the actual pin level diagram of 8086 MPU. 8086 was the first 16-bit microprocessor available in 40-pin DIP (Dual Inline Package) chip. Let us now discuss in detail the pin configuration of a 8086 Microprocessor.

What is 8086 internal architecture?

Tutors from computer science and information technology like 8085, 8086 and 80186 Microprocessor, C, C++ programming, Computer Networking and Data Structures. Hello friends, today we are going to see the 8086 internal architecture. 8086 Microprocessor is a superset of 8085 microprocessor designed by Intel corporation in 1976.

What power supply do I need for 8086 microprocessor?

It requires +5V power supply. A 40 pin dual inline package. 8086 is designed to operate in two modes, Minimum mode and Maximum mode. The minimum mode is selected by applying logic 1 to the MN/MX input pin. This is a single microprocessor configuration. The maximum mode is selected by applying logic 0 to the MN/ MX input pin.

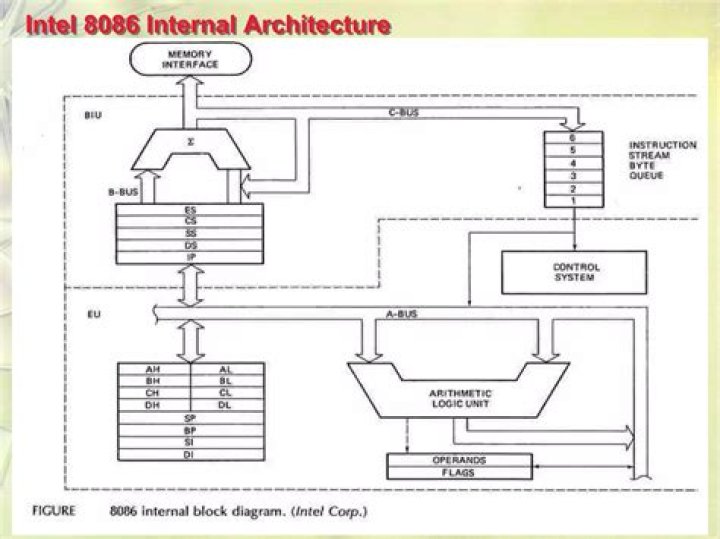

Internal architecture of 8086• 8086 has two blocks BIU and EU.• The BIU handles all transactions of data and addresses on the buses for EU.• The BIU performs all bus operations such as instruction fetching, reading and writing operands for memory and calculating the addresses of the memory operands.

What is the difference between an 8086 and 8088 microprocessor?

The Intel 8088 is a variant of the Intel 8086. The Intel 8088 (” eighty-eighty-eight “, also called iAPX 88) microprocessor is a variant of the Intel 8086. Introduced on June 1, 1979, the 8088 has an eight-bit external data bus instead of the 16-bit bus of the 8086.

What are the general purpose registers in 8086 microprocessor?

The 8086 architecture consists of 4 general-purpose registers of 16 bits. such as AX, BX, CX, and DX. You can access any register depending upon the size of your data.

What is the size of extra segment in 8086?

Code segment (64KB)The CPU 8086 is able to Data segment (64KB) 1 MBaddress 1Mbyte of memory. Extra segment (64KB)The Complete physicallyavailable memory may be Stack segment (64KB)divided into a number of logicalsegments.
