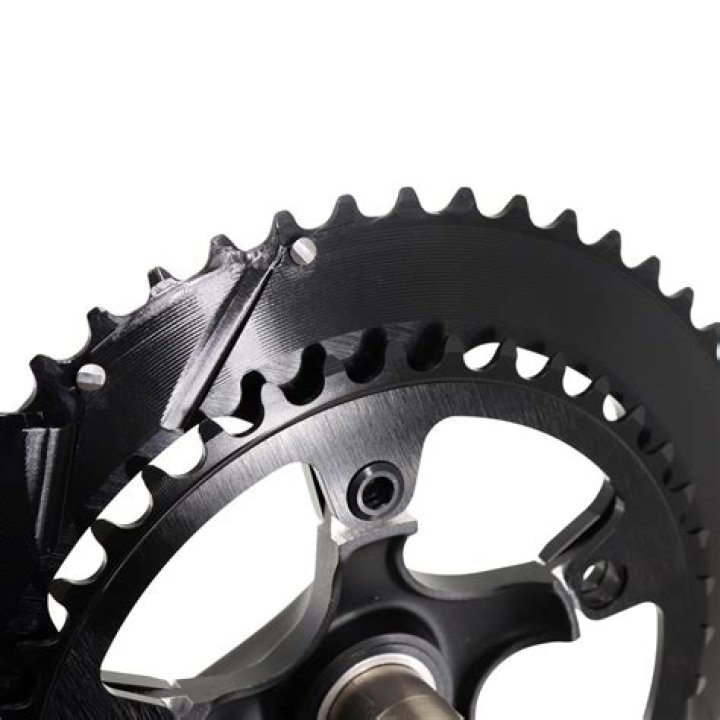

52T is the maximum you can find for 110 BCD. Bigger chainrings would be too flexible for such a small BCD.
What is the smallest chainring for 110 BCD?
33 tooth is the smallest size that will fit the 110 BCD….but they’re hard to find.
What BCD 110?
BCD stands for Bolt Circle Diameter. It is the distance from side to side of a circle that goes directly through each bolt hole in a crankset. When you see a measurement like 110 or 130 BCD, that means that diameter is 110 or 130 millimeters, respectively.
What BCD is Shimano?
How to measure Bolt Circle Diameter (BCD)
| BCD | Distance (mm) | Distance (in) |
|---|---|---|
| 102mm | 72.1mm | 2.84in |
| 104mm | 73.5mm | 2.90in |
| 110mm Shimano – asymmetrical | 63.6mm; 90.6mm | 2.50in; 3.56in |
| 110mm SRAM – asymmetrical | 64.8mm; 89.3mm | 2.55in; 2.51in |
How do oval chainrings work?
Oval chainrings maximize the part of the stroke where power is produced and minimize resistance where it isn’t. As a direct consequence, Oval rings enhance a cyclist’s ability to spin with a smoother power delivery and feel much easier on legs while climbing. Meaning you will go faster and get less tired.
Are oval chainrings better for knees?
The cycling world is largely divided into mashers and spinners. When I was a kid watching the pros, this dichotomy just increased the rivalry and contrast of Lance Armstrong and Jan Ullrich.
How do you calculate BCD on a chainring?
Luckily, it’s possible to calculate the BCD of a chainring by simply measuring the center-to-center distance of two adjacent bolt holes….Chainrings: Understanding BCD
- For 3-bolt chainrings: “A” = “B” x 1.155.
- For 4-bolt chainrings: “A” = “B” x 1.414.
- For 5-bolt chainrings: “A” = “B” x 1.701.
What are the best chainring guards for 130mm BCD rings?
Shimano Acera M361 Chain Guard Item Specifications Color: Black Chainring BCD: 104 Tooth Count: 42 … read more Item Specifications Color: Black Chainring BCD: 104 Tooth Count: 48 … read more Shimano Alfine S501 45t Inner Chainring Guard for 130mm BCD rings.
What kind of chainring Guard does Shimano use for 130mm?
Shimano Alfine S501 45t Inner Chainring Guard for 130mm BCD rings. Shimano Sora R3000/R3030 Chainring Guard Item Specifications Chainring BCD: 110 Max Tooth: 50 … read more Shimano Sora R3000-CG 50t Chain Guard and Fixing Bolts 110mm 5-arm Item Specifications Chainring BCD: 110 Max Tooth: 50 … read more
What is a wide/narrow chainring?
On Wolf Tooth’s patented wide/narrow chainring, the wide side of the tooth has maximum contact on the drive side which spreads the load and improves chainring life. The narrow side allows clearance for mud and debris which reduces friction. These rings are for use with 110 BCD 5 arm cranksets.
What are chainrings on a bike?
Chainrings, like the cogs of your cassette, are machined wheels of metal with evenly-spaced teeth around the outer edge to engage your chain. Most modern road bikes are equipped with two chainrings, though triple chainring set-ups are also still in use.
