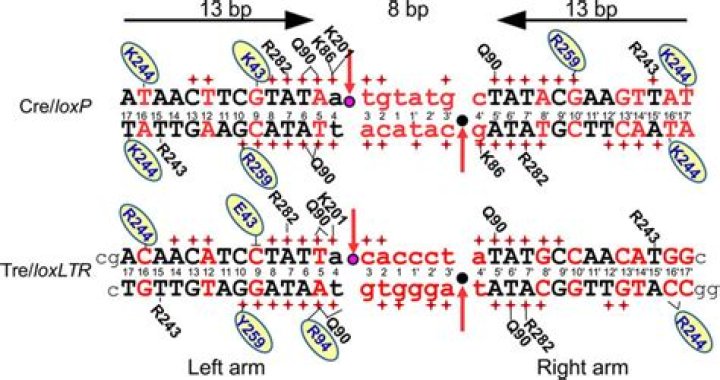

LoxP (locus of X(cross)-over in P1) sites are 34-base-pair long recognition sequences consisting of two 13-bp long palindromic repeats separated by an 8-bp long asymmetric core spacer sequence.
How does Cre and loxP work?
Cre recombinase proteins bind to the first and last 13 bp regions of a lox site forming a dimer. This dimer then binds to a dimer on another lox site to form a tetramer. The double stranded DNA is cut at both loxP sites by the Cre protein. The strands are then rejoined with DNA ligase in a quick and efficient process.
How are loxP sites introduced?
Left mouse: introduction of loxP sites into a genomic locus of interest by homologous recombination using embryonic stem cells (see also Fig. 1). LoxP sites are introduced in a manner that they don’t interfere with the function of the targeted gene.
Is Cre lox reversible?
Cre/loxP-mediated inversion of genomic DNA segments represents a useful tool to alter the mouse genome in a cell type- and/or tissue-specific manner. However, its applicability is hampered by the fact that this reaction is fully reversible.
Where are LoxP sites?
LoxP sites are directional 34 bp sequences made up of two 13 bp recognition sites separated by an 8 bp spacer region. The sequences don’t occur naturally in any known genomes other than the P1 bacteriophage, and are long enough that they are unlikely to occur by chance.
Where are LoxP sites located?
cis
2.4. LoxP sites can be located in cis surrounding a specific gene, or can be located in trans, where the two LoxP sites are located in separate areas of the genome. One of the advantages of using the Cre–LoxP system is the ability to manipulate the transgene in vivo.
What does loxP stand for?
LoxP
| Acronym | Definition |
|---|---|
| LoxP | Locus of Crossover in P1 (genetics) |
Can be studied using Cre loxP system?
In particular, Cre-loxP system is widely used as an integral experimental tool for generating the conditional. This system has enabled researchers to investigate genes of interest in a tissue/cell (spatial control) and/or time (temporal control) specific manner.
What is loxP site?
What is Cre ERT2?
The Cre-ERT2 fusion protein (Cre-ERT2) consists of Cre recombinase fused to a triple mutant form of the human estrogen receptor; which does not bind its natural ligand (17β-estradiol) at physiological concentrations but will bind the synthetic estrogen receptor ligands 4-hydroxytamoxifen (OHT or tamoxifen) and, with …
Is it possible to have naturally occurring loxP sites that could be floxed by Cre?
There are also naturally occurring “cryptic” loxP sites interspersed throughout the mouse genome. For these reasons, it is very important to include the Cre transgenic mouse itself (without any floxed sequences) as a control animal.
Who invented Cre lox?
Nat L. Sternberg
The origins of this tool date to more than 30 years ago when Nat L. Sternberg discovered the recombinase, Cre, and its specific locus of crossover, lox, while studying the maintenance of bacteriophage P1 as a stable plasmid.
What determines the orientation of loxP sites?
The central asymmetric sequence determines the orientation of loxP sites ( Figure 30.2A ). LoxP sites can be found on average every 90 kbp in the phage genome, and are critical to the life cycle of bacteriophage P1 as they ensure the integrity of the phage genome and facilitate its integration into the bacterial chromosome at the target site, loxB.
What happens if you have two loxP sites?
Depending on the loxP sites’ orientation, the use of two loxP sites with the same orientation will lead to the excision of the gene, while opposite orientations will cause inversion. Flox sequences allow for the complete removal of the gene, but partial deletion is also possible.
What are the possible outcomes of loxP recombination?
This event can have three general outcomes based on the location and orientation of the loxP sites: Inversion: If the loxP sites are on the same DNA strand and are in opposite orientations, recombination results in an inversion and the region of DNA between the loxP sites is reversed.
What is meant by inversion and deletion of loxP sites?
Inversion: If the loxP sites are on the same DNA strand and are in opposite orientations, recombination results in an inversion and the region of DNA between the loxP sites is reversed. Deletion: If the sites face in the same direction, the sequence between the loxP sites is excised as a circular piece of DNA (and is not maintained).
