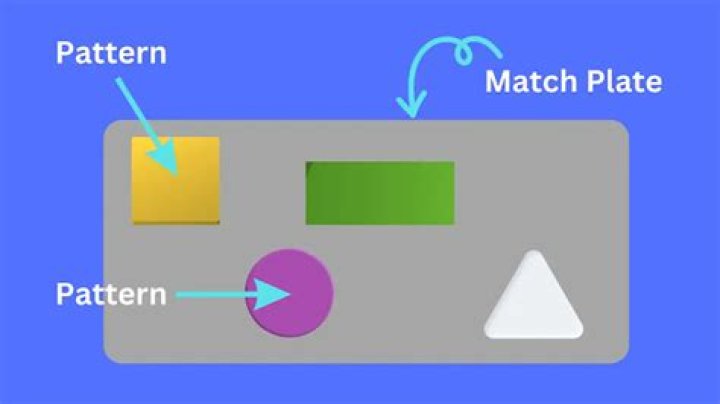

What is Match – Plate Pattern. The match plate pattern is almost similar to the mounted pattern but it can have part of the casting in the cope and part in the drag like split piece pattern. These parts are generally attached to the plate / board in opposite sides in the perfect positions.

What is a match plate pattern in casting?

Match plate patterns are patterns with the top and bottom parts of the pattern, also known as the cope and drag portions, mounted on opposite sides of a board. This adaptation allows patterns to be quickly moulded out of the molding material.

What is a match plate?

1 : a metal plate on the opposite sides of which the halves of a split pattern are attached. 2 : one of two metal plates to which the halves of a split pattern are attached.

In which of the following molding will you use a match plate pattern?

machine molding
A match plate pattern is used in machine molding.

Which material is used for making a match plate pattern?

Explanation: A match plate pattern is made in two halves mounted on both sides called match plate. This match plate is made of either aluminum or wood. The match plate is placed between the cope and the drag flasks by using locating pins.

What is the difference between split pattern and match plate pattern?

What is the difference between a split pattern and a match-plate pattern? – Split pattern: consists of two pieces, dividing the part along a plane where the two halves align. – Match-plate pattern: The two halves are to the opposite sides of a wood or metal plate. Metal supports that hold the position of the core.

What is a match plate pattern when might this be attractive?

What is a match plate, and how does it aid molding? The cope and drag pattern enable independent molding of the cope and drag segments of a mold. This may be desirable when large quantities of identical parts are to be produced, or when the casting is quite large.

How are match plates made?

What is the amount of clay needed in green sand?

What is the amount of clay needed in green sand? Explanation: In green sand, the amount of clay needed in terms of percentage composition is approximately in between 15% to 30% and the amount of water needed in terms of percentage composition is somewhere around 5%.

What are the four types of patterns?

  • Solid or Single Piece Pattern. Single piece pattern is the cheapest pattern among all other types of pattern.
  • Two- Piece Pattern. Two- piece pattern is also called as split piece pattern.
  • Multi Piece Pattern.
  • Match Plate Pattern.
  • Gated Pattern.
  • Skeleton Pattern.
  • Sweep Pattern.
  • Loose Piece Pattern.

What is a match plate and how does it aid molding?

What is the difference between a split pattern and a match plate pattern?

What is a match plate pattern?

Match plate pattern is a split pattern in which cope and drag section mounted on opposite sides of a plate. The plate is known as match plate. These will make easy to cast any shape with high production rate. Mostly runner, gates etc. are also mounted on same plate which will easy to mould making work.

What is the use of a multipiece pattern?

Generally, it is used to make the hollow cylindrical casting. A multipiece pattern is made by more than two pieces, the upper one is called the cope, middle on is called cheek, and the bottom one is named the drag portion. In match Plate Pattern, the cope and drag section of the split pattern are mounted on the opposite of metal or wood plate.

What are the different types of patterns used for casting?

Types of Patterns Used For Casting (Single Piece, Cope and Drag, Match Plate, Loose Piece, Skeleton, Follow board, Sweep, Gated) Sharing is caring. There are different kinds of patterns depending on the complexity and procedure of casting and molding. Some of them are briefly explained below.

What is a gated casting pattern?

Gated patterns are used in producing small castings in mass production systems and on molding machines due to their higher cost. these types of casting patterns are similar to split patterns. Having the cope and drag portions mounted on opposite sides of a plate (usually metal) which comply with the contour of the parting surface.
