60 volts
820.15, “Coaxial cable shall be permitted to deliver power to equipment that is directly associated with the radio frequency distribution system if the voltage is not over 60 volts and if the current is supplied by a transformer or other device that has power-limiting characteristics.”

Can you run power over coax?

Power over Coaxial (PoC) is a standard for video and power transmission over coaxial cable. Power over Coaxial (PoC) is a technology that supports simultaneous transmission of power, high-resolution analogue video signal and OSD control signal over coaxial cable at the distance of up to 400 m.

What is the difference between RG-58 and RG8X?

RG8. RG8 is a thicker 50 ohm cable, at 12 AWG, that can provide a stronger signal than RG58. It is mainly used for amateur radio. There is also a version called RG8X, which is thinner at 16 AWG but provides similar signal quality.

Is coax cable High Voltage?

These coaxial and shielded cables have been used in both military and industrial high voltage applications including Radar, ECM systems, power supplies and instrumentation.

Is coaxial cable low voltage?

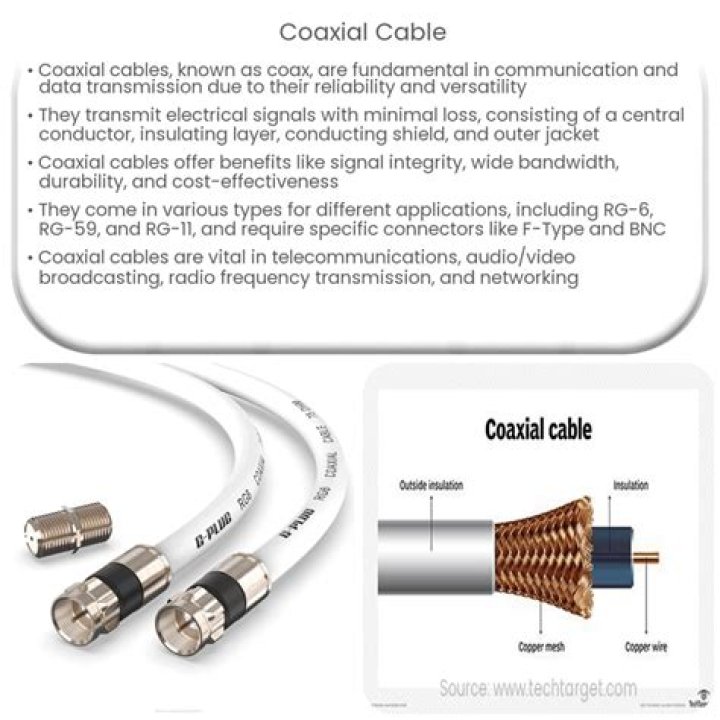

Coaxial cable is a type of transmission line, used to carry high-frequency electrical signals with low losses.

How much power can a cable take?

Electrical current is measured as ampacity. As a guide, #14 wire is good for 15 amps, #12 wire is good for 20 amps, #10 wire is good for 30 amps. As the number gets smaller, the size of the wire gets larger and the amount of amps it can handle also gets larger.

Can a coaxial cable be used as an antenna?

Yes, you can connect your TV antenna to your cable TV wiring system. If your home is wired for cable TV and you want to cut the cord and drop cable in favor of a TV antenna the same coax cable can be used for the TV antenna.

What is the frequency range of coaxial cable?

For typical coaxial cables, the shield cutoff frequency is 600 (RG-6A) to 2,000 Hz (RG-58C). Attenuation (loss) per unit length, in decibels per meter.

Does coaxial cable need to be grounded?

The National Electrical Code (NEC) requires that the antenna mast and the coaxial cable be bonded to the home’s ground electrode system (GES), which is usually the ground rod installed at the power meter and breaker box. A separate ground rod is not required, and is not recommended.

What is the difference between RG-58 and 8x power cables?

The power capabilites of the cable also depends on the dielectric used in the cable. Thats why 8X has a slightly lower power rating than RG-58 even though it has a heavier center conductor, but has less loss than RG58. These values can vary slightly depending on the manufacturer.

What is the impedance of an RG-58 cable?

The insulation surrounding the RG- 58 cable carries a low impedance of around 50 or 52 ohms. It is generally used for generating signal connections that are of low power. RG-58 Specifications TypeRG-58 RG-58A RG-58B RG-58C Impedance Z0(Ω) 53.5 52 53.5 50 Dielectric

How much power does an RG-58 lose?

RG-58 is pretty high loss, even at CB freqs. it is > relatively low power rated, as Toll Free stated. Sean aka Bigfoot > > A little over 400 watts, at a flat match. If you have an SWR higher, > > you will lose the ability to handle power.

How much power can rg8x cable handle on HF?

RG8X has a cellular polyethylene dielectric (full of air bubbles) and those air bubbles behave differently at sea level than they do at 10,000 feet elevation — a lot differently, and cables need to be derated for higher elevation use. I wouldn’t push RG8X above a few hundred Watts on HF, as the chart referenced previously indicates.
