What is the minimum grade for a 100mm sewer line?

1.65%
Maximum practicable fall, minimum 1.65% for 100mm pipe, 2.5% for 65mm.

What is a branch drain?

A drain pipe connecting the soil line or plumbing fixtures in a building to the main line.

What is the maximum slope for drainage?

The maximum slope for efficient drainage is usually a drop of 1/2 inch per 1 foot of horizontal distance. A pipe with a very extreme slope of 45 degrees or more is considered vertical. Vertical pipes, or stacks, drain solids and liquids effectively.

How many houses can use a 100mm sewer pipe?

These notes identify the basic requirements common to both a drain and a sewer unless noted otherwise. Minimum size 100mm diameter if less than ten houses (or equivalent) connected • Minimum size 150mm diameter if more than ten houses (or equivalent) connected.

What is a branch drain in plumbing?

Fixture and branch drains – A branch drain is a waste pipe that collects the waste from two or more fixtures and conveys it to the building or house sewer.

What happens if drain has too much slope?

“Oversloped pipes (greater than ½ in. per ft.) are as likely to clog as undersloped ones because the liquids move too fast and leave the solids behind.” Why it’s costly: Without the proper slope, drain lines may clog more frequently.

What is the minimum slope for a drain pipe?

According to plumbing code, drain pipe has to be sloped a minimum of 1/4-inch per foot and a maximum of three inches per foot or vertical. A slope of less than 1/4-inch per foot will cause constant drain clogs and a slope of more than three inches will allow the water to drain without the solids.

What is a 1 in 100 fall?

A 1:100 slope means that for every 100 metres along the ground, the slope height increases or decreases by 1 metre.

What happens at the end of a branch drain?

As branch drains reach the end of their horizontal runs, they empty into soil stacks, or main drain stacks, which are large-diameter vertical pipes. Wastewater, along with the solid wastes that they carry, will now drop down into the main drain lines leading out to the city sewer system or septic field.

What is the end point of my home’s drainage system?

The end point of your home’s drainage system is the municipal sewer main. Your home’s main drain line runs perpendicular into the sewer main, angled downward to promote the flow of waste.

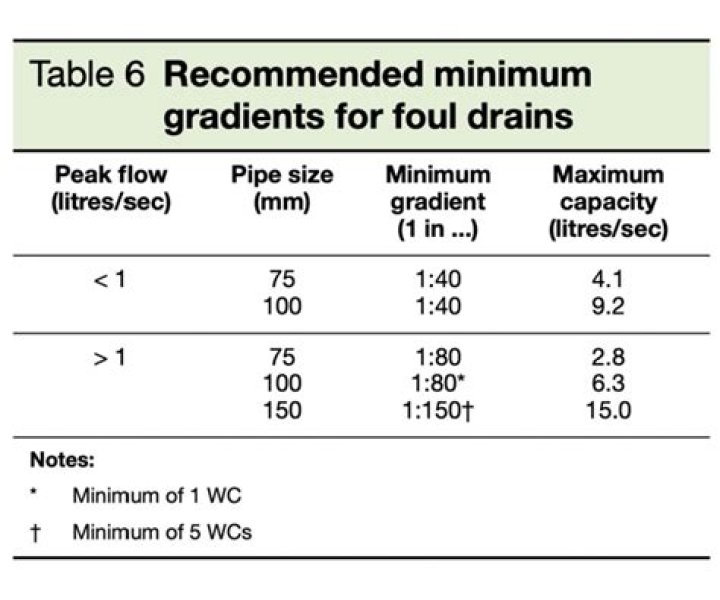

What is the discharge rate for a 110mm foul drain?

A 110mm foul drain taking the discharge of less than 1 l/s should be laid at a 1:40 (25mm per metre) fall. A foul drain taking the discharge from a minimum of one WC can be laid at 1:80 (12.5mm per metre).

What is the standard size of a drainage system?

Terrain Drainage System Size (mm) Angle° L R Z1 Z2 Code REST BEND SINGLE SOCKET- to change 110mm at base of soil stack: 87½° as standard 110 87½ 230 200 245 1704D21 Size (mm) Angle° L R Z1 Z2 Code REST BEND DOUBLE SOCKET- to change 110mm at base of soil stack: 87½° as standard 110 87½ 205 200 245 1704D21D
