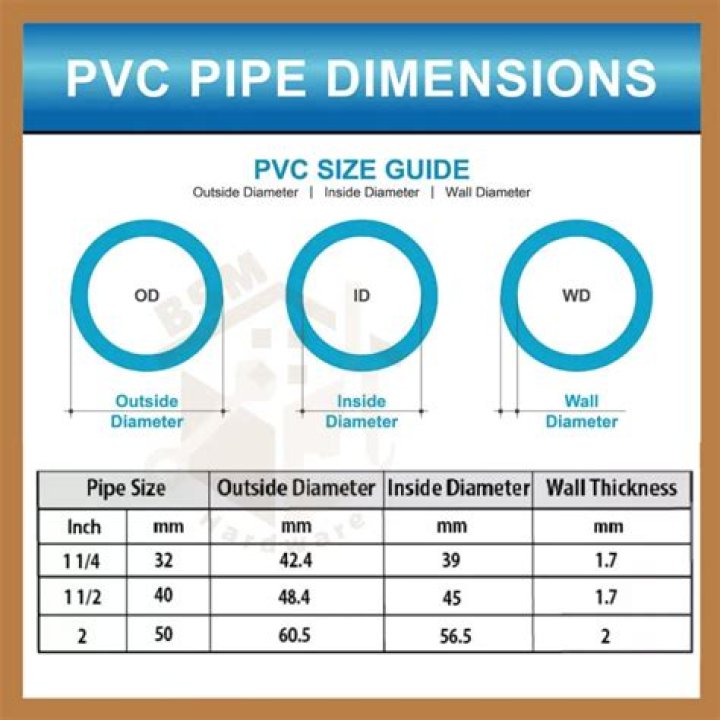

0.840″
Wall Thickness The OD for 1/2″ PVC pipe is 0.840″ and the OD for 3″ PVC pipe is 3.500″.
What are the different types of PVC fittings?
- PVC Furniture Fittings.
- PVC Compression Fittings.
- PVC DWV Fittings.
- CTS CPVC Fittings.
- PVC Duct Fittings.
- CPVC Duct Fittings.
- Brass Push Fittings.
- Push-On PVC Fittings.
Are all PVC Fittings Schedule 40?
There are two main types of PVC fittings & pipe, schedule 40 & schedule 80. Both schedule 40 and 80 pipe have the same outside diameter. In PVC fittings, it is the outside diameter that changes. Both schedule 40 and 80 fittings have the same inside diameter.
Does PVC pipe have 2 1 2 inches?
section of 4004-025AB 2 1/2″ Schedule 40 PVC Pipe is made of durable, industry approved PVC material. This pipe is used in a variety of PVC applications around the world and are made with a smooth interior wall resulting in less pressure loss and higher volume than conventional pvc pipe.
What is the OD of 1 1 2 Schedule 40 PVC pipe?
Schedule 40 PVC Pipe Dimensions Chart
| Nominal Pipe Size | O.D. | Nominal wt./ft. |
|---|---|---|
| 1″ | 1.315 | .333 |
| 1-1/4″ | 1.660 | .450 |
| 1-1/2″ | 1.900 | .537 |
| 2″ | 2.375 | .720 |
Is pipe size ID or OD?
For sizes larger than 12-inch, NPS corresponds to the actual outside diameter. For each nominal pipe size, the outside diameter (O.D.) remains relatively constant; the variations in wall thickness affect only the inside diameter (I.D.).
Will 1/2 inch PVC fit inside 3/4 inch PVC?
PVC Pipes that telescope in other pvc pipe. This will allow the 3/4″ pipe to slide into a 1.25″ pipe with enough friction to hold it in place. Any 1/4″ sch 40/80 pipe will fit nicely into 1/2″ Sch 80. Any 3/8″ sch 40/80 pipe will fit loosely into 3/4″ Sch 80 and pretty well into Class 315 1/2″ pipe.
How do you connect two different size PVC pipes?
- Connect PVC water pipes of different sizes with a reducing bushing.
- Glue a coupler to the larger pipe using PVC cement.
- Solder a copper bell reducer onto a pipe and connect it with one of a different diameter by soldering the other pipe to the other end of the reducer.
Which is better schedule 40 or 80?
Schedule 80 pipe is designed with a thicker wall. This means the pipe is thicker and stronger, and as a result it can handle higher pressures. Schedule 40 PVC pipe is strong, rigid, and can handle pressure applications. For jobs that require a higher pressurization though, schedule 80 pipe is better suited.
Can you mix Schedule 80 and Schedule 40 PVC?
As mentioned earlier, both schedule 80 and schedule 40 PVC pipe have the exact same outside diameter. This is possible because schedule 80’s extra wall thickness is on the inside of the pipe. This means schedule 40 and 80 pipe do fit together and can be used together if necessary.
What is the inside diameter of 2.5 inch PVC pipe?
Schedule 40 PVC Pipe Dimensions Chart
| Nominal Pipe Size | O.D. | Average I.D. |
|---|---|---|
| 2″ | 2.375 | 2.047 |
| 2-1/2″ | 2.875 | 2.445 |
| 3″ | 3.500 | 3.042 |
| 3-1/2″ | 4.000 | 3.521 |
What is the outside diameter of a 1 inch PVC pipe?
1.315
| PVC and CPVC Pipes – Schedule 40 | ||
|---|---|---|
| Nominal Pipe Size (inches) | Outside Diameter (inches) | Inside Diameter*) (inches) |
| 1/2 | 0.840 | 0.622 |
| 3/4 | 1.050 | 0.824 |
| 1 | 1.315 | 1.049 |
What are the lengths of PVC pipe?
PVC is the Thermoplastic – Polyvinyl Chloride. PVC pipes are ten feet in length and come in various diameters, from 1/2 inch to 2 or 3 inches and up. There are several grades, including plumbing grade and furniture grade. PVC pipe also comes in various thicknesses – thin-walled and thick-walled (i.e., Schedule 40).
How big is a PVC pipe?
The actual exterior diameter of a 1 inch PVC pipe is not 1 inch, but rather 1.32 inches (3.35 cm). 4. 1-1/4 inch (3.18 cm) plumbing grade PVC pipes are ideal for very rigid, lightweight projects. They are commonly used to build a strong sturdy platforms, like shelves, tables and walls.
What are the dimensions of PVC conduit?
Nominal sizes of schedule 40/schedule 80 PVC couplings range, in one-quarter inch increments, from one-half inch up to 1 1/2 inches, from 2 to 2 1/2 inches and from 3 to 8 inches. The reported size of PVC conduit couplings is the nominal, or trade size, of the corresponding pipe.
What are PVC pipe fittings?
PVC Fittings Drain, waste and vent fittings made of polyvinyl chloride (PVC). PVC-DWV fittings are used for residential and commercial sanitary systems. PVC is one of the thermoplastic materials most frequently specified for a variety of products used in the pipe and fittings industry.
