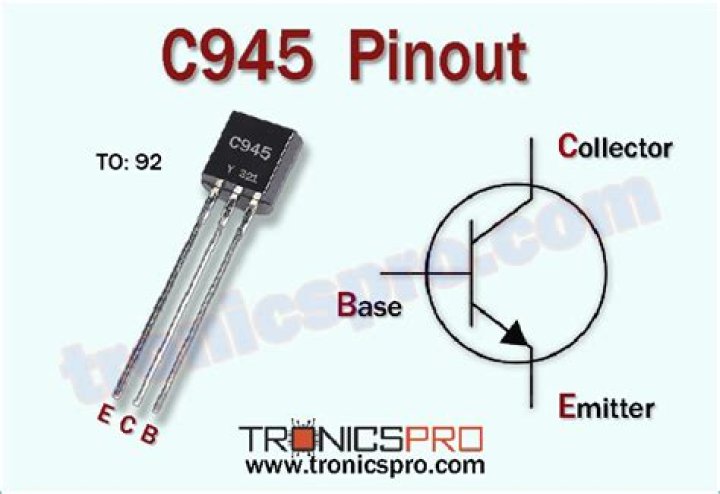

Warning: The C945 is a Japanese NPN transistor and hence the C945 pinout will be in Emitter, Collector, Base order. But for European transistors like BC546 the order will be as Emitter, Base and Collector.
What is the use of c945 semiconductor?
C945 is usually used in the electronic circuits where there is a need of high speed transistor and a low current. C-945 has three semiconductor regions named as emitter, base and collector respectively.
What is the saturation voltage of c945 BJT transistor?
The saturation voltage of most BJT transistors are 0.6V but the C945 has only 0.3V therefore it can perform well in low voltage circuits or in any circuit where low base voltage is available and other BJT transistors are not saturating. It can also be used in RF circuits under 200MHz frequency.
Can I replace the c945 with the 2SC1815?
You can replace the C945 with the 2SC1815, 2SC2458, 2SC3198, 2SC3199, 2SC3916, 2SC3917, 2SC3918, 2SC3919, 2SC3920, 2SC3921, 2SC3922, 2SC3923, C1815, KSC1815, KSC945C, KTC3198 or KTC3199.
What is the pinout of a typical RS232 connector?
Below is the pinout of a typical standard male 9-pin RS232 connector, this connector type is also referred to as a DB9 connector.
What is the catalyst 9300 series?
The Catalyst 9300 Series is designed for Cisco StackWise®technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution.
How many pins does a Type C plug have?
The USB Type-C Receptacle/Plug Pins The USB Type-C connector has 24 pins. Figures 1 and 2, respectively, show the pins for the USB Type-C receptacle and plug. Figure 1.
