Short Inter-frame Spacing (SIFS), is the time interval required by a wireless device in between receiving a frame and responding to the frame. It is used in Distributed coordination function (DCF) scheme, which is a mandatory technique used to prevent collisions.

What is interframe space in can?

The Interframe Space consists of a three recessive bit Intermission and the bus idle time between Data or Remote Frames. During the intermission, no node is permitted to initiate a transmission (if a dominant bit is detected during the Intermission, an Overload Frame will be generated).

What is an interframe spacing and why is it useful in a wireless transmission?

IFS is a time interval in which frames cannot be transmitted by stations within a Basic Service Set. This space between frames ensures that frames do not overlap each other. The time interval differs depending on the frame type and the applicable IFS type for that frame.

What interframe space is used before an ACK frame?

SIFS
In IEEE 802.11 networks, SIFS is the interframe spacing prior to transmission of an acknowledgment, a Clear To Send (CTS) frame, a block ack frame that is an immediate response to either a block ack request frame or an A-MPDU, the second or subsequent MPDU of a fragment burst, a station responding to any polling a by …

How are interframe spaces used in an IEEE 802.11 wireless local area network WLAN )?

How are interframe spaces used in an IEEE 802.11 wireless local area network (WLAN)? They are used to defer a station’s access to the medium and provide various levels of priority.

Why is Difs longer than SIFS?

In particular, define DIFS, PIFS, and SIFS and explain why DIFS is set larger than PIFS and PIFS is set larger than SIFS. Answer: DIFS = distributed inter frame spacing, a new transmission can begin only after DIFS of idle time. SIFS = spacing between transmission and ACK, between polling and response.

CAN interframe spacing?

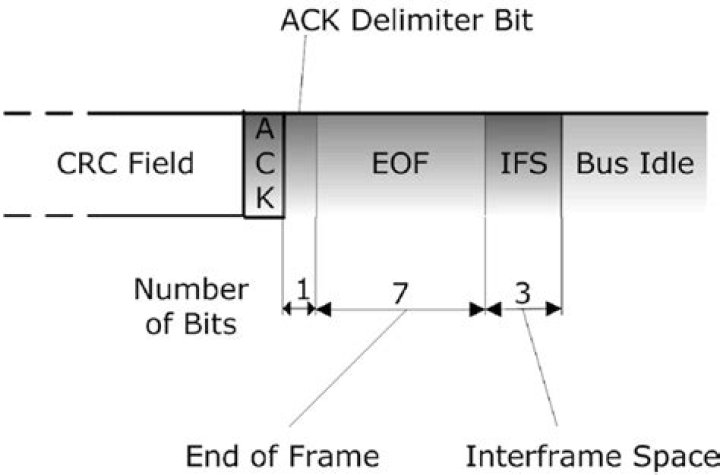

The interframe space is composed of at least three recessive bits called the Intermission. This allows nodes time for internal processing before the start of the next message frame. After the intermission, the bus line remains in the recessive state (bus idle) until the next transmission starts.

CAN protocol car?

CAN protocol (as defined by ISO11898), is a well-defined framework, based on which all the Automotive OEMS’s and Suppliers design communication interface between the various control units. . CAN Protocol defines, how the vehicle data like engine speed, vehicle speed, diagnostics information etc.

Which type of interframe space provides the highest level of priority network function control over the medium for a short time period?

Which type of interframe space provides the highest level of priority network function control over the medium for a short time period? Short interframe space (SIFS).

What is NAV in WIFI?

The network allocation vector (NAV) is a virtual carrier-sensing mechanism used with wireless network protocols such as IEEE 802.11 (Wi-Fi) and IEEE 802.16 (WiMax). The virtual carrier-sensing is a logical abstraction which limits the need for physical carrier-sensing at the air interface in order to save power.

Why is the SIFS shorter than Difs?

Answer: DIFS = distributed inter frame spacing, a new transmission can begin only after DIFS of idle time. Having SIFS smaller than both PIFS and DIFS prevents ACK and important control packets from getting killed.

Why IEEE 802.11 defines a Sifs shorter than a DIFS?

SIFS = spacing between transmission and ACK, between polling and response. Having SIFS smaller than both PIFS and DIFS prevents ACK and important control packets from getting killed.

What is Interframe Space?

Interframe space is the time from the end of the last symbol of the previous frame to beginning of the first symbol of the preamble of the next frame in the air. ♣ What is the unit of IFS?

What is SIFS (Short Interframe Space)?

Short Interframe Space (SIFS), is the amount of time in microseconds required for a wireless interface to process a received frame and to respond with a response frame. It is the difference in time between the first symbol of the response frame in the air and the last symbol of the received frame in the air.

What is DCF Interframe spacing (DIFs)?

Using DCF technique, a station needs to sense the status of the wireless channel before it can place its request to transmit a frame. The time interval that a station should wait before it sends its request frame is known as DCF Interframe Spacing (DIFS). DISF is calculated as the sum of SISF and twice the slot time.

What is PCF Interframe Space (PIFS)?

The Point Coordination Function (PCF) Interframe Space (PIFS) was for use specifically in PCF implementations. According to the 802.11-2016 standard, “The PCF mechanism is obsolete.” At this time, it is not all that useful to understand so will not be covered here.
