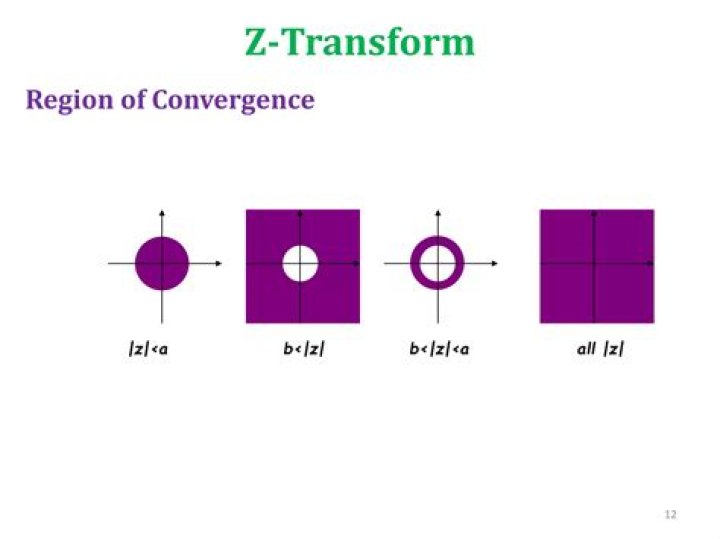

What is the region of convergence in the z plane?

Region of convergence (ROC) is the region (regions) where the z-transform X(z)or H(z) converges . ROC allows us to determine the inverse z–transform uniquely. First let’s consider some examples. The unit sample δ(n)has z-transform 1 , hence ROC is all the z plane .

What is significance of region of convergence in Z transform?

The region of convergence, known as the ROC, is important to understand because it defines the region where the z-transform exists. The z-transform of a sequence is defined as. X(z)=∞∑n=−∞x[n]z−n. The ROC for a given x[n], is defined as the range of z for which the z-transform converges.

What is the region of convergence of the Z transform of a unit step function?

Explanation: Region of Convergence is the region for which the values of the roots in z transform are lying in the function and ROC remains the same for addition and subtraction in z-domain.

What is the relation between Z transform and Dtft?

3. If h[n] is absolutely summable, then the ROC contains the unit circle, the system has a DTFT and is said to be “stable.” 4. A stable and causal sequence has all its poles inside the unit circle.

What are the properties of region of convergence?

(i) The properties of ROC are follows: (ii) Property 1: The ROC of x [z] consists of a ring in the z-plane centered about the origin. (iii) Property 2: The ROC does not contain any poles. (iv) Property 3: If x [n] is of finite duration, then the ROC is the entire z-plane, expect possibly z=0 and/or z=∞.

What is the importance of ROC?

Significance of ROC: ROC gives an idea about values of z for which Z-transform can be calculated. ROC can be used to determine causality of the system. ROC can be used to determine stability of the system.

Which one of the following is the correct statement the region of convergence of z-transform?

Explanation: h[n] =u[n] Hence, Region of Convergence is the region for which the values of the roots in z transform are lying in the function and is the range of values of z for which |z|>1.

What is Z in domain?

In single-variable calculus, X is the domain and Y is the range. In 3-D coordinates, X and Y are the domain (i.e., R2) and then Z is the range.

What is the region of convergence of the Z-transform?

The z-transform exists when the infinite sum converges. The sum may not converge for all values of ‘z’. The value of ‘z’ for which the sum converges is called Region of Convergence (ROC). 1. The ROC is a concentric ring or a circle in the z-plane centered at the origin.

What is a region of convergence (ROC) in the z-plane?

All complex values of „z=rejω‟ for which the summation in the definition converges form a region of convergence (ROC)in the z-plane. A circle with r=1 is called unit circle and the complex variable in z-plane is represented as shown below. Description :

What is the region of convergence of a sequence?

The region of convergence, known as the ROC, is important to understand because it defines the region where the z-transform exists. The z-transform of a sequence is defined as The ROC for a given \\ (x [n]\\), is defined as the range of \\ (z\\) for which the z-transform converges.

What is the region of convergence in LTI?

For any given LTI (Section 2.1) system, some of these signals may cause the output of the system to converge, while others cause the output to diverge (“blow up”). The set of signals that cause the system’s output to converge lie in the region of convergence (ROC).
