Whenever the Reynolds number is less than about 2,000, flow in a pipe is generally laminar, whereas, at values greater than 2,000, flow is usually turbulent.
How do you know if flow is turbulent?
For practical purposes, if the Reynolds number is less than 2000, the flow is laminar. If it is greater than 3500, the flow is turbulent. Flows with Reynolds numbers between 2000 and 3500 are sometimes referred to as transitional flows.
What is the difference between turbulent and laminar flow?

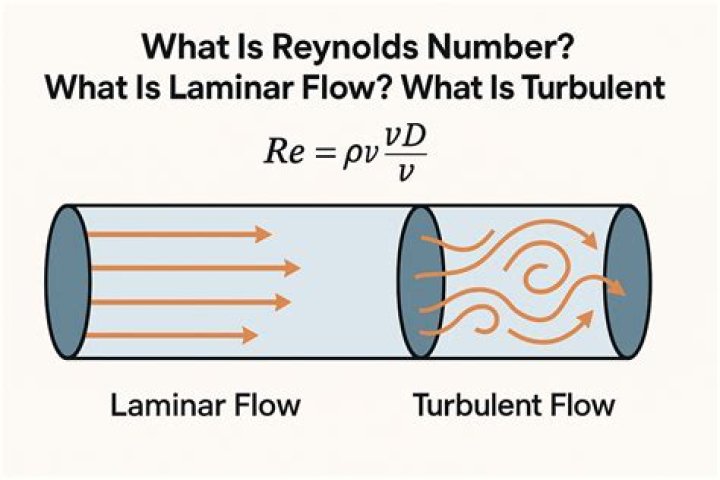

Laminar flow or streamline flow in pipes (or tubes) occurs when a fluid flows in parallel layers, with no disruption between the layers. Turbulent flow is a flow regime characterized by chaotic property changes.
What is Reynolds number for plate?
For a smooth flat plate, breakdown occurs at a Reynolds’ number between 3 × 105 and 106. In turbulent flow, the concept of a boundary layer still applies but in this case, besides the molecular friction force, there is an interaction due to the momentum transfer of fluid masses between adjacent layers.
When Reynolds number is between 1000 and 2000 the flow of liquid becomes?
turbulent
If Reynold number is less than 1000, the flow is streamline. If Reynold number is greater than 2000, the flow is turbulent. If Reynold number lies between 1000 and 2000 , the flow becomes unsteady.
What are some examples of turbulent flow?
Common examples of turbulent flow are blood flow in arteries, oil transport in pipelines, lava flow, atmosphere and ocean currents, the flow through pumps and turbines, and the flow in boat wakes and around aircraft-wing tips.
Why is turbulent flow important?
The mixing action of the turbulent flow enhances the temperature averaging effect in addition to the transfer of energy from the hot water to the surrounding fluid. When a hot object is cooled, the mixing action of turbulent flows in the fluid surrounding the object plays an important role in cooling it (Figure 2.3).
What is turbulent flow give example?
What is the critical Reynolds number for a flat plate?
approximately 106
For a flat surface, the critical Reynolds’ number is approximately 106.
How the flow can be distinguish between turbulent and streamline by using Reynolds number?
Distinguish between streamline and turbulent flow of a liquid. iii) The velocity of streamline flow is less than critical velocity but, in turbulent motion the liquid moves with a velocity greater than the critical velocity of the liquid. iv) Streamline flow is laminar whereas, turbulent flow is non-laminar.
Turbulent flow. If the Reynolds number is greater than 3500, the flow is turbulent. Most fluid systems in nuclear facilities operate with turbulent flow.
What is the local Reynolds number of a flat plate?
In this case, the Reynolds number is defined using the local distance x (i.e., the distance from the leading edge along the flat plate as the characteristic length). The local Reynolds number is then given by
What is the rereynolds number for laminar flow?
Reynolds number for laminar flow is typically Re < 2100. Turbulent flow definition is the opposite. It is dominated by inertial forces and is characterized with chaotic eddies, vortices, and other flow instabilities.
What is the Reynolds number?
The Reynolds number, abbreviated as Re, determines whether the fluid flow is laminar or turbulent. Let’s consider a pipe where a fluid is flowing through it and a connection has been done with a separate line from where dye or ink is provided.
