Measurement is Taken on the Concave Side of the Bar with a Straight Edge

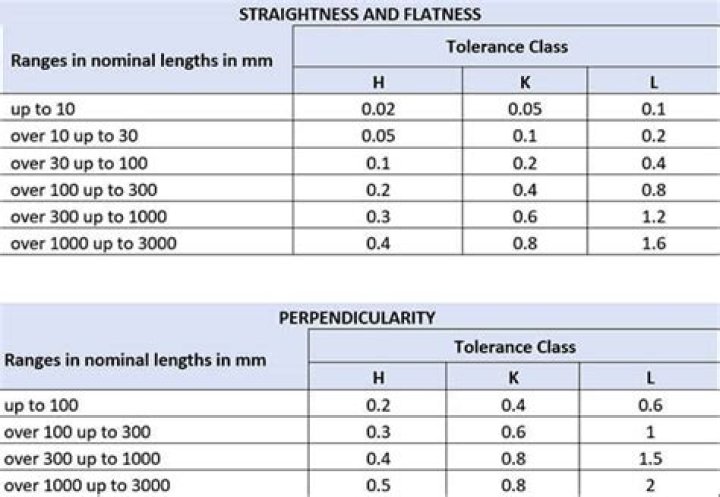

| Normal Straightness* | Special Straightness** |
|---|---|
| 1/4 in. (6.35 mm) in any | 1/8 in. (3.18 mm) in any |
| 5 ft. (1524 mm) or 0.4 | 5 ft. (1524 mm) or 0.2 |
| per cent of length for lengths over 5 ft | per cent of length for lengths over 5 ft |
| (1524 mm) | (1524 mm) |
What is tolerance in steel?
A tolerance is a range of acceptable measurements outside of the nominal dimension. A tolerance or set of tolerances is made to give the manufacturer of a metal product some measurement allowance in the production process. Tolerances are needed because metal forming processes have unpreventable sources of variation.
What is the thickness tolerance for cold rolled sheet?
Standard Tolerances For Cold Rolled Steel
| Cold Rolled Steel | Specified Thickness | Tolerance |
|---|---|---|
| 14 Gauge | 0.075″ | 1.91 mm | ± 0.005″ | 0.13mm |
| 16 Gauge | 0.060″ | 1.52 mm | ± 0.005″ | 0.13mm |
| 18 Gauge | 0.048″ | 1.22 mm | ± 0.004″ | 0.10mm |
| 20 Gauge | 0.036″ | 0.91 mm | ± 0.003″ | 0.08mm |
How is a round bar typically specified?
Bars are specified in different ways or formats depending on the type of material. Round bar is called out with a size and description. For example 1” solid round means the material OD is 1” in diameter and the material is solid round. Square bar is called out similarly to round bar.
How do you calculate the tolerance of steel?
Weight Tolerance (dia * dia) / 162* 12 = weight of 1 TMT rod. Tolerance is provided with adherence to IS:1786-2008 standard law.
What is ASTM A108?
The ASTM A108 (A108M is the equivalent metric version of A108) is a standard specification created to help define the technical requirements for Steel Bars, Carbon and Alloy, Cold-Finished. Steel grades for A108 are defined by their chemical composition.
Is standard for thickness tolerance?
[254.0mm], excl, in thickness, the tolerance under the specified thickness is 0.010 in….ASTM A480 Plate Thickness & Flatness Tolerances.
| Specified Thickness (t), in. [mm] | Flatness Tolerance for Thicknesses Given, in. [mm] |
|---|---|
| 3/4 [19.05] ≤ t < 1 [25.40] | 5/16 [7.9] |
| 1 [25.40] ≤ t < 1 1/2 [38.10] | 1/4 [6.4] |
| 1 1/2 [38.10] ≤ t < 4 [101.60] | 1/4 [6.4] |
| t ≥ 4 [101.60] | 1/4 [6.4] |
How is steel tolerance calculated?
Is 513 sheet thickness tolerance?
Internal diameter : 510 mm (thickness 0.63 mm and below and width up to 1020 mm) and 600 mm (for other sizes) and Coil weight: 6-23 tonnes (as per size) Tolerance as per IS /ISO-16162/2005 Common Grades : IS 513 (Part-1):2016 (CR1, CR2, CR3,CR4), IRSM 41, SAILCOR, Copper Bearing, HSCR – 26/35.
Is stainless steel rod strong?
Stainless steel threaded rod proves, when tested, to be stronger than most Grade 2 steels, but weaker than Grade 5 and Grade 8 stainless steel raw materials that have been hardened. Depending on the ratio of metals in the alloy, the definitive strength of most stainless steel grades will range from about 70 to 220 ksi.
What is the difference between the 1215 and 1045 hex bar screw stocks?
The 1215 and 12L14 free machining carbon hex bar screw stocks are useful for machined parts requiring close finish tolerances, while 1045 carbon hex bar is found in axles, bolts, forged connecting rods, crankshafts, torsion bars and light gears, among other applications. Ready to Order? Continue to the Catalog
What is the tolerance for the thickness of the steel bar?
If the bar is 1.5″ thick x 3.5″ wide, the width tolerance of +/-0.006″ will be the tolerance for the thickness as well, which is +/-0.006″.
What grades of Hex bars does ryryerson offer?
Ryerson offers cold drawn carbon hex bar in grades 1018, 1045, 12L14 and 1215 in a variety of sizes. The 1018 is a low carbon steel with strength and ductility suited for a variety of fabrication processes including welding and machining.
What is the tolerance for Tol diameter?
Diameter Tol. Diameter Tol. Square Tol. Square Tol. Across Flat Tol. Square Tol. Width Tol. Width governs the tolerances both width and thickness for rectangle bars. If the bar is 1.5″ thick x 3.5″ wide, the width tolerance of +/-0.006″ will be the tolerance for the thickness as well, which is +/-0.006″.
