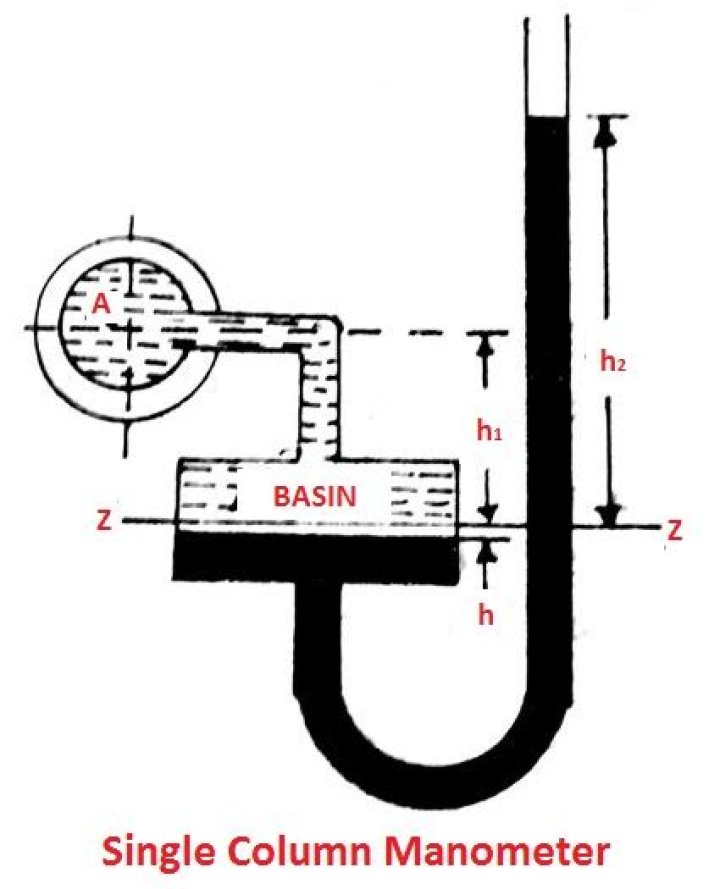

This complete set-up will be termed as single column manometer. Pressure will be measured at a point in the fluid by connecting the single column manometer with the container filled with liquid whose pressure needs to be measured. Rise of liquid in right limb of glass tube will provide the pressure head.
What are the applications of manometer?
Summary. – A manometer is one of the most accurate devices for measuring pressure in the lower ranges. – Typical manometer applications include measuring pipe fluid flows, HVAC system pressure, and gas pressure. – Typical manometer liquids are mercury, water, and light oils.
What is the principle of a manometer?
The principle behind a manometer gas or liquid pressure gauge is extremely simple. Hydrostatic equilibrium shows that the pressure when a liquid is at rest is equal at any point. For example, if both ends of the U-tube are left open to the atmosphere then the pressure on each side will be equal.
What is inclined single column manometer?
Single column manometer is one modified form of U-Tube manometer. There will be one reservoir with large cross-sectional area about 100 times as compared to the area of glass tube. Rise of liquid in right limb of glass tube will provide the pressure head.
Why is large reservoir used in single column manometer?
Why is large reservoir used in single column manometer? Explanation: Single column manometer directly gives the pressure by measuring the height in the other limb and due to large cross sectional area of the reservoir, for any variation in pressure, the change can be neglected.
Why inclined manometer is used in measuring pressure?
The inclined manometer is essential for retaining the most accurate pressure levels for industrial gas applications. A low-pressure industrial gas system may be used to heat or cool manufacturing processes. A small blockage within the gas system can be detected with an inclined manometer and corrected.
What are the advantages of manometer?
Advantages of manometer:
- It has a low cost.
- The manometer is suitable for low-pressure applications.
- It is simple in construction.
- It has better sensitivity.
- It has good accuracy.
- It has simple operation and construction.
How a manometer is used to measure pressure?
In its simplest form the manometer is a U-tube about half filled with liquid. When positive pressure is applied to one leg, the liquid is forced down in that leg and up in the other. The difference in height, “h,” which is the sum of the readings above and below zero, indicates the pressure.
Which device is popularly used for measuring?
U-tube Differential Manometer. Inclined Single column manometer. Vertical Single column manometer.
What is a mercury U-tube manometer used for?
A mercury filled U-tube manometer is used to measure the flowrate of air in a pipe. One leg of the manometer is connected to the upstream side of an orifice plate and the other leg is connected to the downstream side. The pressure on the upstream side is higher causing a difference in height of the two columns of 8mm.
What are the advantages of inclined manometer over U-tube manometer and well type manometer?
Inclined manometers provide greater readability by stretching a vertical differential along an inclined indicating column, giving more graduations per unit of vertical height and increasing the instrument’s sensitivity and accuracy. Inclined manometers frequently have scales graduated to hundredths of an inch.
What is the difference between single column and double column manometer?
Single column manometer: One of the limbs in double column manometer is converted into a reservoir having large cross sectional area (about 100 times) with respect to the other limb. Fig. 3.3 (a) shows a vertical single column manometer. Initially, the both limbs of the manometer are exposed to atmospheric pressure.
What is the main application of manometer?
Following are the main application of manometer: 1 Used in the maintenance of heating, ventilation and air conditioning (HVAC) systems, and gas systems. 2 It is used to construct bridges, swimming pools and other engineering purposes. 3 Used in climate forecasting. 4 In clinical applications such as blood pressure measuring and physiotherapy.
What is the difference between open manometer and mercury manometer?
Open manometers measure gas pressure relative to atmospheric pressure. A mercury or oil manometer measures gas pressure as the height of a fluid column of mercury or oil that the gas sample supports. How this works is, a column of mercury (or oil) is open at one end to the atmosphere and exposed to the pressure to be measured at the other end.
What is a you tube manometer?
U-tube Simple Manometer: U-tube manometer is a simple mano metric device used to measure pressure at a point in a fluid, by balancing the fluid column by the same or another column of fluid. It has a glass tube bent in “U” shape with some amount of same or other type of fluid, called mano metric fluid like mercury. 7.
