A Wheatstone bridge is a divided bridge circuit used for the measurement of static or dynamic electrical resistance.
How does Wheatstone bridge measure unknown resistance?
When the variable resistor is adjusted, then the current in the galvanometer becomes zero, the ratio of two two unknown resistors is equal to the ratio of value of unknown resistance and adjusted value of variable resistance. By using a Wheatstone Bridge the unknown electrical resistance value can easily measure.
What does a potentiometer measure?
A potentiometer is an instrument which is used for measurement of potential difference across a known resistance or between two terminals of a circuit or network of known characteristics. A potentiometer is also used for comparing the emf of two cells.
Why Carey Foster bridge is better than Wheatstone bridge?
Carey Foster Bridge Advantages The Carey Foster bridge is a modified form of the meter bridge in which the effective length of the wire is considerably increased by connecting a resistance in series with each end of the wire. This increases the accuracy of the bridge.
Why are Wheatstone bridges used to measure strain?
The value of strain caused by the stress is determined by measuring a change in resistance of the gauge, as a result of the change in the dimensions of the object due to the applied force. To measure this small change in resistance, a Wheatstone Bridge Circuit is used.
What is the principle of potentiometer?
The principle of a potentiometer is that the potential dropped across a segment of a wire of uniform cross-section carrying a constant current is directly proportional to its length. The potentiometer is a simple device used to measure the electrical potentials (or compare the e.m.f of a cell).
What are potentiometers used for?
A potentiometer is a type of position sensor. They are used to measure displacement in any direction. Linear potentiometers linearly measure displacement and rotary potentiometers measure rotational displacement.
Why potentiometer is called potentiometer?
The measuring instrument called a potentiometer is essentially a voltage divider used for measuring electric potential (voltage); the component is an implementation of the same principle, hence its name. …
How will you measure the unknown resistance using Carey Foster bridge?
To measure a low unknown resistance X, replace Y with a copper busbar that can be assumed to be of zero resistance. In practical use, when the bridge is unbalanced, the galvanometer is shunted with a low resistance to avoid burning it out.
What is Wheatstone bridge and its applications?
Wheatstone Bridge is used in applications where small changes in resistance are to be measured in sensors. This is used to convert a change in resistance to a change in voltage of a transducer. The combination of this bridge with operational amplifier is used extensively in industries for various transducers and sensors.
What is Wheatstone bridge principle?

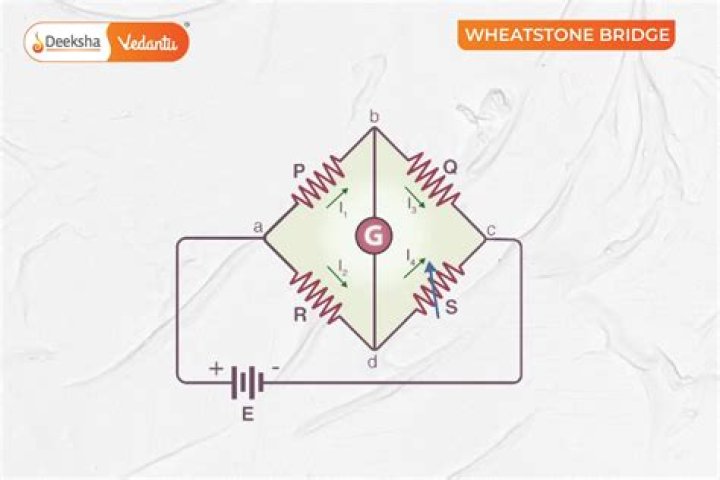

Wheatstone Bridge Principle states the if four resistance P, Q, R and S are arranged to form a bridge as shown in figure with a cell E and one key K1 between the point A and C and galvanometer G and tapping key K2 between the points B and D, closing K1 first and K2 later on, if the galvanometer shows no deflection then bridge is balanced.
What is Wheatstone bridge for strain gauges?
Strain gauge transducers usually employ four strain gauge elements electrically connected to form a Wheatstone bridge circuit (Figure 2-6). A Wheatstone bridge is a divided bridge circuit used for the measurement of static or dynamic electrical resistance.
What is a Wheatstone bridge used for?
A Wheatstone bridge is an electrical circuit used to measure an unknown electrical resistance by balancing two legs of a bridge circuit, one leg of which includes the unknown component.
