As a result the diode is said to exhibit negative resistance region (region spanning from Peak point to Valley Point) in the V-I characteristic curve. This effect is called transferred electron effect and thus the Gunn diodes are also called Transferred Electron Devices.
What is the principle involved in Gunn diode?
Working principle of gunn diode Gunn diode’s principle of operation is based on the Gunn effect. In some materials (such as GaAs and InP), after reaching a threshold level by an electric field in the material, the electrons mobility decreases simultaneously, while electric field increases producing negative resistance.
What is the application of Gunn diode?
Because of their high frequency capability, Gunn diodes are mainly used at microwave frequencies and above. They can produce some of the highest output power of any semiconductor devices at these frequencies. Their most common use is in oscillators, but they are also used in microwave amplifiers to amplify signals.
What do you mean by Gunn effect briefly describe?
Definition of Gunn effect : the production of rapid fluctuations of current when the voltage applied to a semiconductor device exceeds a critical value with the result that microwave power is generated.
Why Gunn diode is called diode?
The Gunn diode or transferred electron device can be termed a diode because it has two electrodes. This negative resistance region means that the current flow in diode increases in the negative resistance region when the voltage falls – the inverse of the normal effect in any other positive resistance element.
What is the efficiency of Gunn diode?
Gunn diodes have the ability to generate continuous power in the range of several milliwatts, and frequency nearly 1 to 200 GHz holding efficiency about 5 to 15%.
What is Gunn effect?
Why Gunn diodes are called transferred electron devices?
The Gunn diode or transferred electron device can be termed a diode because it has two electrodes. This negative resistance area enables the Gunn diode to amplify signals, enabling it to be used in amplifiers and oscillators.
What is Gunn diode threshold voltage?
The threshold voltage corresponds to the value of 1.2 V. Such a current-voltage characteristic testifies upon the capability of the device being investigated to generate high-frequency …
What is a Gunn diode used for?
The microwave device that operates on the principle of transfer of electrons is called as Gunn diode. This is one of the diodes used as a microwave detector. It uses the avalanche and transit time properties of semiconductors.
What is the working principle of a goggdunn diode?
Gunn diode’s principle of operation is based on the Gunn effect. In some materials (such as GaAs and InP), after reaching a threshold level by an electric field in the material, the electrons mobility decreases simultaneously, while electric field increases producing negative resistance.
What is the working principle of a diode oscillator?
Gunn diode oscillator operating principle – after biasing the diode into it’s negative resistance region (as shown on the characteristic below) with DC voltage it will produce self-generated oscillations.
What happens to resistance when voltage decreases in a Gunn diode?

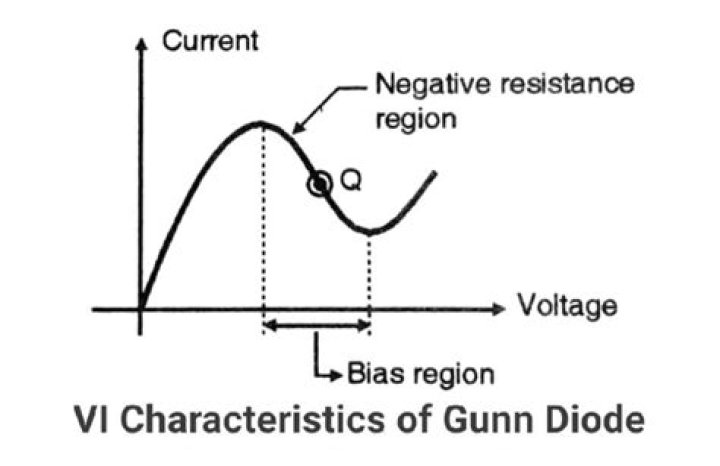

But, to maintain a constant voltage, a new slice is created at the cathode. Similarly, if the voltage decreases, then the resistance will decrease by extinguishing any existing slice. The current-voltage relationship characteristics of a Gunn diode are shown in the above graph with its negative resistance region.
