Impulse turbine work on the principle of Newton’s second law as the resulting change in momentum sets buckets and wheel into rotary motion and thus mechanical energy is made available at the turbine shaft. The fluid jet leaves the runner with a reduced energy.
Where is impulse turbine used?
An impulse turbine is used for high head hydroelectric power plants. An impulse turbine is a turbine that is driven by high-velocity jets of water. It is named as impulse turbine for the fact being that the resulting impulse from high velocity jets are used to spins the turbines.
What is principles of impulse and reaction machines?
WORKING PRINCIPLE OF IMPULSE REACTION STEAM TURBINE: The outlet relative velocity of steam is much less than at the inlet to the blades. In a reaction turbine, nozzles will move on bearing in the opposite direction of the steam flow and the pressure is not constant in this turbine.
What is impulse type turbine?
An impulse turbine is a turbine that is driven by high velocity jets of water or steam from a nozzle directed on to vanes or buckets attached to a wheel. The resulting impulse (as described by Newton’s second law of motion) spins the turbine and removes kinetic energy from the fluid flow.

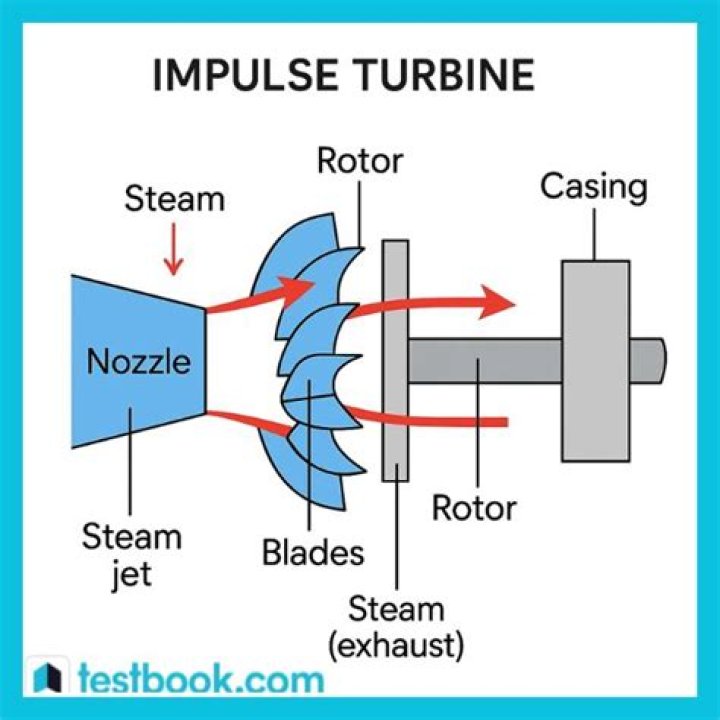

What is working principle of impulse turbine with diagram?
Working Principle of Impulse Turbine The runner spins in the air, and the fluid is sprayed to the blades through the nozzle to exchange energy with the turbine. A jet nozzle or a series of nozzles directs the high-speed flow to the blades, which are usually in the shape of buckets or cups.
What is impulse turbine give example?
Example: Pelton wheel turbine. Pelton Wheel Turbine: It is a tangential flow impulse turbine in which the pressure energy of water is converted into kinetic energy to form a high-speed water jet and this jet strikes the wheel tangentially to make it rotate.
Which principle is used in hydralic turbines?
principle of momentum
Which principle is used in Hydraulic Turbines? Explanation: A Hydraulic Machine uses the principle of momentum which states that a force is generated which is utilized in a turbine. Explanation: Turbines use blades and buckets to alter the direction of water. It is used to change the momentum of water.
What is the work of turbine?
A wind turbine turns wind energy into electricity using the aerodynamic force from the rotor blades, which work like an airplane wing or helicopter rotor blade. This translation of aerodynamic force to rotation of a generator creates electricity.
What is reaction turbine principle?
Reaction Turbine Working Principle: This reaction force rotates the rotor at a very high speed. Similarly, in the working of a reaction turbine, the reaction force is generated by the moving fluid above the impeller blade. The reaction forces generated in the impeller blade causes impellers to rotate.
On what principle impulse turbine is different from reaction turbine?
While the impulse turbine gets the kinetic energy and the momentum transferred by the water mass of a high-pressure jet, a reaction turbine is subjected to the pressure or potential energy generated by the weight of water at the bottom of the head working on one side of its blades called pressure side.
What are the 2 types of impulse turbine?
There are 3 main types of impulse turbine in use: the Pelton, the Turgo, and the Crossflow turbine. The two main types of reaction turbine are the propeller turbine (with Kaplan variant) and the Francis turbine.
Which principle is used in hydraulic turbines?
How does an impulse turbine work?
In the impulse turbine the entire pressure drop of the stage is concentrated across the fixed blades which act as nozzles. These nozzles accelerate the steam to a high velocity dictated by the conditions before and after the fixed blades. This high velocity steam impinges upon the moving blades and drives them at a certain velocity.
What are the advantages and disadvantages of pressure compounded impulse turbine?
• The pressure compounded impulse turbine has the advantages of reduced blade velocity, reduced steam velocity (friction) and equal work among the stages. • The disadvantages are the pressure drop across the fixed rows of nozzles, which requires leak-tight diaphragms and large number of stages.
What is the maximum mechanical efficiency of an impulse turbine?
For construction of the impulse turbine (Pelton) detailed plans were drawn up taking into account the design and implementation of the fundamental equations of hydraulic turbomachinery. From the experimental data found maximum mechanical efficiency of 0.6 ± 0.03 for a water flow of 2.1 l/s.
What is an impulse blade?
When moving blades are driven entirely by the impact of an external jet impinging upon them, they are known as impulse blades. When the fluid in the moving blades accelerates and leaves the blades at a higher velocity than when it entered them, it imparts a jet reaction to the blades making these reaction blades.
