duplex stainless steel
Alloy 2205 (UNS S32305/S31803) is a 22% chromium, 3% molybdenum, 5-6% nickel, nitrogen alloyed duplex stainless steel plate with high general, localized, and stress corrosion resistance properties in addition to high strength and excellent impact toughness.
What is duplex casting?
Duplex Stainless Steel Casting is the casting process that takes duplex stainless steel as the raw material. Duplex stainless steels are called “duplex” because they have a two-phase microstructure consisting of grains of ferritic and austenitic stainless steel.
CAN 2205 stainless steel be hardened?
The best suited heat treatment for this grade is solution treatment (annealing), between 1020 – 1100°C, followed by rapid cooling. Grade 2205 can be work hardened but cannot be hardened by thermal methods.
What is CD3MN material?
CD3MN is a Fe-Cr-Ni-Mo duplex stainless steel, with greater corrosive resistance than standard 18-8 Cr-Ni(SS304) and 18-14-2/18-14-3 Cr-Ni-Mo (SS316) stainless steel parts.
Does 2205 stainless steel rust?
The corrosion rate of 2205 was 0.416 MPY (milli-inch per year), whereas 316L exhibited 0.647 MPY. When 2205 was coupled to 316L with equal surface area ratio, the corrosion rate of 2205 reduced to 0.260 MPY, indicating that 316L stainless steel behaved like a sacrificial anode.
Is 2205 stainless steel magnetic?
However marine grade 2205 duplex stainless steel contains higher levels of Chromium, Nickel, Molybdenum, and Nitrogen. Due to the their ferrite content, Grade 2205 stainless steels are magnetic, and the duplex structure makes for higher strength balustrade systems, with higher resistance to stress corrosion cracking.
Can Super Duplex cast?
We provide a wide range of super duplex stainless steel castings, which are designed to meet our customer’s target. Our manufacturing capability of super duplex stainless steel casting weight ranges from 1g to 220kg. The maximum overall size of casting is 1,000mm * 620mm * 380mm. The minimum wall thickness is 0.5mm.
What P group is duplex 2205?
Duplex Stainless Steels is designated as UNS S31803, UNS S32205. It is listed in NACE MR-01-75 for oil and gas service. ASME: SA-240, SA-479, SA-789, SA-790, SA-182 (Grade 51), ASME Pgroup 10H.
What material is F51?
Duplex F51 material is a duplex stainless steel grade known for its superior physical and mechanical properties. These properties include high resistance to localized pitting, corrosion, crevice corrosion & stress related corrosion caused by chlorine as well as sulphur containing media.
What is A182 F51?
ASTM A182 F51 is a duplex stainless steel that offers a high resistance to general , pitting, stress and crevice corrosion, as well as a high mechanical strength and good weldability.
Is 2205 Stainless better than 316?
2205 Stainless Steel is far superior to standard marine grade 316 and 316L. 2205 Stainless achieves almost twice the corrosion resistance to ordinary 316. This is due to added levels of Nickel, Chromium, Molybdenum and Nitrogen.
Is 2205 stainless steel marine grade?
Both grade 316 and 2205 stainless steel have been classified as marine grade making them suitable for use in coastal locations or other areas where excessive chloride is present. However marine grade 2205 duplex stainless steel contains higher levels of Chromium, Nickel, Molybdenum, and Nitrogen.
What is 2205 duplex stainless steel casting process?
2205 duplex stainless steel casting process is actually a lost wax investment casting process that produces near-net shape stainless steel parts using the following steps: Patterns are affixed to a wax runner bar to create an assembly called a “tree”
What is the difference between 316L and 2205 castings?
The high chromium, molybdenum and nitrogen contents of 2205 stainless steel castings provide corrosion resistance superior to common stainless steel castings, such as, 316L and 317L in most environments. Actually, in China, few stainless steel foundries can make 2205 duplex stainless steel castings.
What is the CPT of 2205 stainless steel?
The CPT of this type of stainless steel is around 35°C. This grade is resistant to chloride stress corrosion cracking (SCC) at temperatures of 150°C. Grade 2205 stainless steels are apt replacements to austenitic grades, especially in premature failure environments and marine environments.

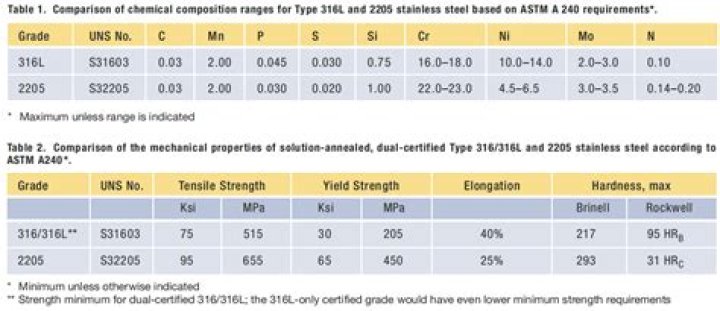

What is Duplex 2205 made of?
General Properties Duplex 2205 is a two-phase, ferritic, austenitic 22% chromium, 3% molybdenum, 5 to 6% nickel alloyed stainless steel. It is the most widely used duplex stainless steel grade and is characterized by high yield strength, double that of the standard austenitic stainless steel grades.
