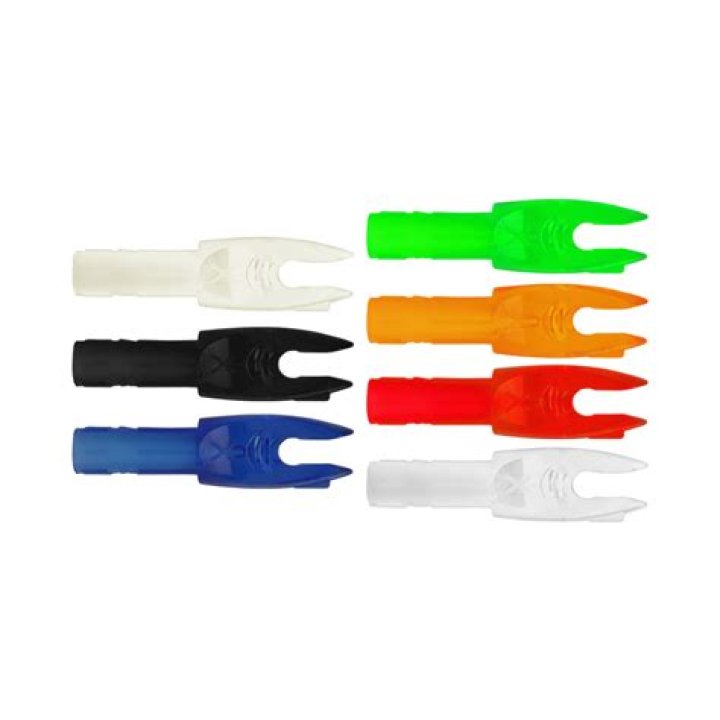

X-nock
X-nock that fits the AXIS-style shafts. It has a . 098 throat and each nock weighs 7 Grains each. 12 Nocks Per Package.
Can you replace the nock on an arrow?
Replace damaged nocks by carefully cutting off the old nock (taking care not to damage the carbon arrow shaft). Once the nock is removed, fix the new nock by pushing it on making sure that the string groove is 90 degrees to the index fletching (the white vane on the arrow in the picture).
What size nocks for my arrows?
What Size Do You Need?
| FOB Size | Arrow ID | Arrow Nock Size |
|---|---|---|
| Standard | 0.244 – 0.246 inch (6.2mm) | S OR GT |
| H-AXIS | 0.231 – 0.236 inch (6mm) | H OR H.E. |
| X-AXIS | 0.198 – 0.205 inch (5mm) | X OR A |
| MICRO | 0.164 – 0.166 inch (4mm) | G OR F |
What is the standard arrow diameter?
Most wood arrows come in diameters of 5/16″, 11/32″, and 23/64″. Be sure to use a test kit or at least use a spine chart when choosing spine.
What is the inside diameter of Easton Axis arrows?
204″
The Match Grade variant of the 5mm Axis arrow shafts from Easton has the most exacting straightness tolerance in the business, ±. 001”….Breakdown.
| Grains Per Inch | 260 – 11.5 300 – 10.7 340 – 9.5 400 – 9.0 |
|---|---|
| Inside Diameter | 260 – .204″ 300 – .204″ 340 – .204″ 400 – .204″ |
What is the inside diameter of Easton Axis 5mm?
5mm Axis Carbon Arrows
| Size | Shaft Weight GPI | O.D. Inches |
|---|---|---|
| 500 | 8.1 | 0.256 |
| 400 | 9.0 | 0.264 |
| 340 | 9.5 | 0.267 |
| 300 | 10.7 | 0.275 |
What is a universal Nock?
Product description. Carbon Express crossbolt nocks are performance engineered, utilizing state-of-the-art processes and materials. The Universal nock is compatible with crossbows that use omni-nock nocks; omni-nock is a trademark of TenPoint crossbow technologies.
Can you change the nocks on an arrow?
You can, therefore, always easily change the nocks if you need to. Although there are many different press-in-nock sizes available, the most common are 3/16 inch for thin arrows and 1/4 inch for thicker arrows. There are nocks available that are a little smaller or bigger, but they often still fit with arrows with one of these two sizes.
What is a Nock used for in archery?
These nocks are primarily used for shafts that cannot accept press-in-nocks, such as wooden arrows. Although these nocks are also present on some (cheap) carbon arrows, they are mostly used by traditional archers. The other nock types can damage aluminum arrows.
How do you test a Nock on a bow?
Keep the bow horizontally so that the arrow is pointing downwards. The arrow might dangle of the arrow rest, but that doesn’t matter for the test. The arrow should stay on the string while you point the arrow downwards. If the arrow falls off, the throat of the nock is too big.
Can you use a cone Nock on an aluminum arrow?
Cone nocks are, therefore, only used for aluminum arrows. You will have to glue the nocks on to make sure that they won’t come off. Only the cheapest arrows available use build-in nocks.
