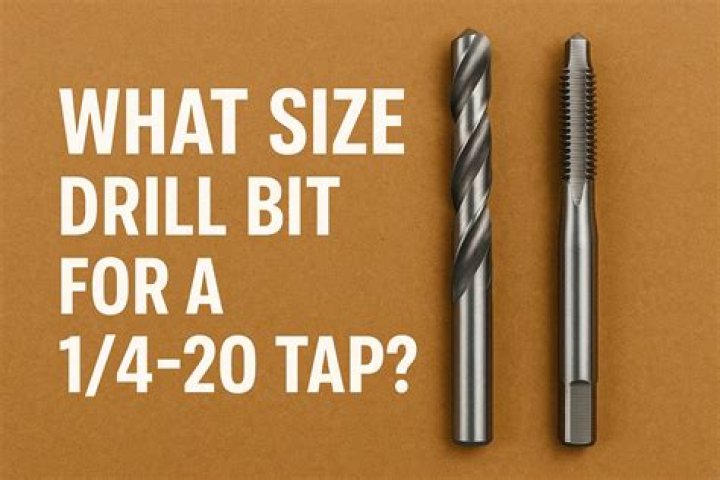

For a 1/4-20 bolt, the optimal drill bit size is #7 or 13/64th.
What drill is used to tap a 1 4 18 NPT hole?
TAP DRILL SIZE CHART FOR NPT THREADS (National Pipe Threads)
| NPT Size | Tap Drill Size (in.) | (Decimal) (in.) |
|---|---|---|
| 1/16 – 27 | “C” | (0.242) |
| 1/8 – 27 | “Q” | (0.332) |
| 1/4 – 18 | 7/16 | (0.438) |
| 3/8 – 18 | 9/16 | (0.562) |
What does a 1/4-20 tap mean?
1/4-20. The thread size is 1/4-20 – this means that the nominal diameter is 1/4î and that there are 20 threads per inch. The pitch is the distance between each thread. When there are 20 threads per inch, the distance between each thread is the reciprocal of the TPI (1/20 = 0.05î).
What size is a 1/4 drill bit in MM?
| Drill Bit Hole Diameters | ||
|---|---|---|
| Metric Size | Fractional Size | |
| 7 mm | .2756 | 1/4 |
| 8 mm | .3150 | 17/64 |
| 9 mm | .3543 | 9/32 |
What is a 1/4 tap?
Example: 1/4 – 20NC The 1/4 represents the diameter of the thread in inches. The 20 represents the number of threads per inch or TPI. Standard taps are either standard coarse series threads NC (1/4-20), fine series threads NF (1/4-28) or extra fine series NEF (1/4-32).
What is a 1/4 NPT thread?
As a general “rule of thumb” an NPT thread is approximately 1/4″ (0.25”) larger than its “name.” For a 1/4″ NPT fitting the “nominal” OD is 0.533”. NPT fittings are slightly tapered so the “nominal” diameter is the diameter in the middle of the threaded portion, as measured by the top (crest) of the threads.
How do I choose the right size tap?
Correct tap drill sizes can be selected by following charts or by this formula: Tap drill size. Major (outside or O.D.) diameter of the thread minus 6 (. 75 x 1.299) divided by the number of threads per inch.
What is G and H in thread?
“G” designates Ground Thread. “H” designates the pitch diameter is on high side of basic. These two letters (GH) are followed by a numeral indicating the Tolerance of Pitch diameter oversize.
What size is a number 1 drill bit?
Downloadable versions:
| Drill size | Diameter (in) | Diameter (mm) |
|---|---|---|
| 1 mm | 0.0394 | 1.0000 |
| #60 | 0.0400 | 1.0160 |
| #59 | 0.0410 | 1.0414 |
| #58 | 0.0420 | 1.0668 |
How many MM is a 1/8 drill bit?
Fractional inch drill bit sizes
| Drill size | Diameter (in) | Diameter (mm) |
|---|---|---|
| 1/8 in | 0.1250 | 3.1750 |
| 9/64 in | 0.1406 | 3.5719 |
| 5/32 in | 0.1563 | 3.9688 |
| 11/64 in | 0.1719 | 4.3656 |
What size is #20 drill bit?
Drill Bit Size Chart
| Size | Decimal Equivalent | Size |
|---|---|---|
| 74 | 0.0225 | 21 |
| .60 mm | 0.0236 | 20 |
| 73 | 0.024 | 4.10 mm |
| 72 | 0.025 | 4.20 mm |
What is tap drill size?
As a rule of thumb, for Metric threads, the tapping drill can be calculated by subtracting the pitch from the diameter of the thread. eg for an M5x0. 75 thread the tapping drill is 5-0.75mm = 4.25mm. eg for 3/4.10 UNC pitch = 0.1, diameter = 0.75, tapping drill = 0.65 = 16.5mm.
How do you calculate tap drill size?
How to Calculate Tap Drill Size. Apply the numbers to the formula using an 84 percent thread depth. The formula would be: Dh = 0.252 — 0.0130 (84/20) = 0.0130 (4.2) = 0.252 — 0.0546 = 0.1974 inches. Find the nearest drill bit size in 1/16ths of an inch. Multiply 0.1974 times 16 and the answer is 3.15.
What size hole for tap?
Most drill charts recommend a 5/16 drill for a 3/8-16 bolt. Cutting holes that are smaller will leave more material for the tap to cut out, risking tap breakage. Drilling larger holes will result in weaker threads, increasing the possibility of stripping them.
a good tap drill is 90% (± 2 pp) of major diameter for fine threads. Example (inch, coarse): For size 7⁄16 (this is the diameter of the intended screw in fraction form)-14 (this is the number of threads per inch; 14 is considered coarse ), 0.437 in × 0.85 = 0.371 in .
What are drill sizes?
Drill size, or wire gauge drill size, is a term used to describe the diameter of the hole “drilled” through an orifice. Gas passes through this hole on its way to the burner. The size is expressed as a number, the drill number, that indicates which size drill is used to bore the hole.
