You’ll need a brick trowel and a tuck pointer. If you have concave mortar joints, you’ll need a masonry jointer that’s the width of your joints. For flat joints, you’ll need a joint raker.

What is a jointer used for in masonry?

A jointer in masonry construction is a tool in the form of a striking iron or a striking tool used to finish the vertical or the horizontal mortar joints. The masonry construction requires tooling process which help in waterproofing the joints and also to beautify the construction.

What tools do I need for pointing brickwork?

Tools & Materials

  • brick hammer.
  • Pointing chisel.
  • Paint brush.
  • Bucket.
  • Pointed trowel.
  • Finishing trowel.
  • Margin trowel.

What is a convex jointer?

The MARSHALLTOWN Concave and Convex Brick Jointers refer to the type of joint left by the tool. All styles are made from high carbon steel and have a lifted handle for increased knuckle clearance. Both Concave and Convex Brick Jointers are Made in the USA with Global Materials. …

What is a grapevine jointer?

MARSHALLTOWN’s Grapevine Jointer provides an indented line in the center of the joint creating a rough and wavy appearance. The jointer also produces excellent definition in the head joint. Forged from high grade steel and heat-treated, this product comes in a DuraSoft® or double-ended handle.

How do you fill mortar between bricks?

Fill the Joints Scoop a dollop of mortar onto a brick trowel or hawk, hold it up even with a bed joint, and push the mortar against the back of the joint with the tuck-pointing trowel. Eliminate voids with a few slicing passes of the trowel’s edge, then add more mortar until the joint is filled.

What is a bullhorn jointer used for?

7/8″ Bullhorn Jointer Rose Bullhorn Jointer is great for touch up work and compressing mortar and has been an essential tool for the kit bag as far back as people have been Bricklaying.

What is a brick jointer?

Brick jointers are specialist tools used to smooth and imprint grooves into recently filled mortar joints between bricks or paving slabs before they set.

What is a grapevine mortar joint?

Grapevine Joint It is created with a grapevine jointer, which is a metal blade with a raised bead that creates an indented line in the center of the mortar joint. These lines are often rough and wavy, simulating the generally straight yet slightly irregular appearance of a grapevine.

How to do tuckpointing?

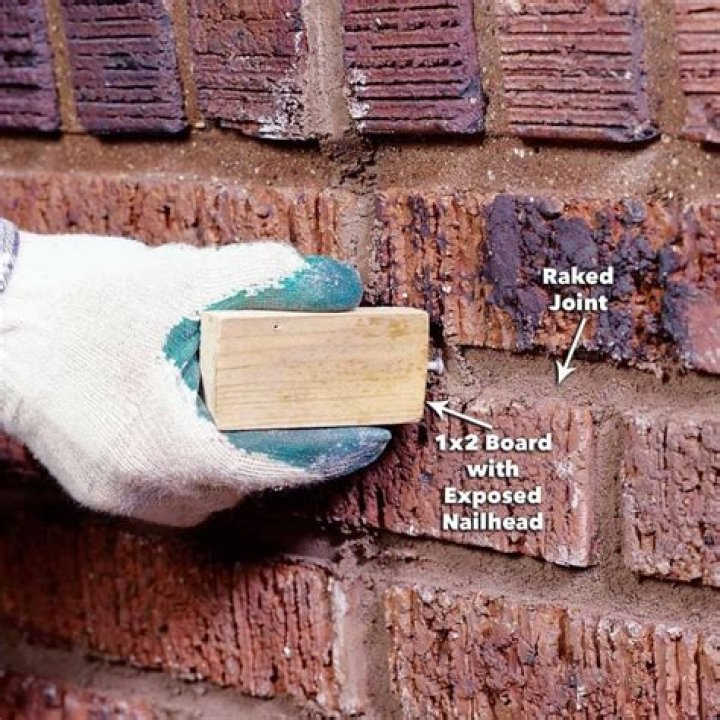

To start,remove the existing mortar joints to a depth of approximately one inch.

  • Brush dust and debris from the ground-out mortar joints with a masonry brush or high-pressure air nozzle.
  • Mix the new mortar to match the existing brick color.
  • Fill the joints with the new mortar,working with the horizontal joints first.
  • After applying the wet mortar to the joints,smooth it to resemble a flat surface or slightly indented curve (depending on your desired look).
  • When the new mortar begins to harden but is still semi-pliable,use a straightedge and a tuckpointing tool to scrape straight lines in the centers of the newly
  • Carefully apply lime putty to the scraped lines to form contrasting fillets,then cut away the excess.

    • What is a mortar joint?

    In masonry, mortar joints are the spaces between bricks, concrete blocks, or glass blocks, that are filled with mortar or grout. If the surface of the masonry remains unplastered, the joints contribute significantly to the appearance of the masonry.

    How do you repair brick mortar?

    To repair missing or cracked mortar joints on a brick wall: Mix Mortar: Mix up a batch of matching colored mortar in a bucket or wheelbarrow. Clean Mortar Joints: Use a chisel or screwdriver to remove any loose mortar from the mortar joints. Fill Mortar Joints: Use a grout bag, trowel, or wood stick to force the mortar in the gaps.

    What do tools do brick mason use?

    What Tools Do Masons Use? Trowels. A mason’s most important tools are her trowels. Chisels. Masons use chisels to cut bricks into smaller pieces. Hammers. A mason’s hammers don’t look exactly like the hammers most people are accustomed to using. Jointers. Masons use jointers to make mortar joints. Squares. Levels. Straightedges.
