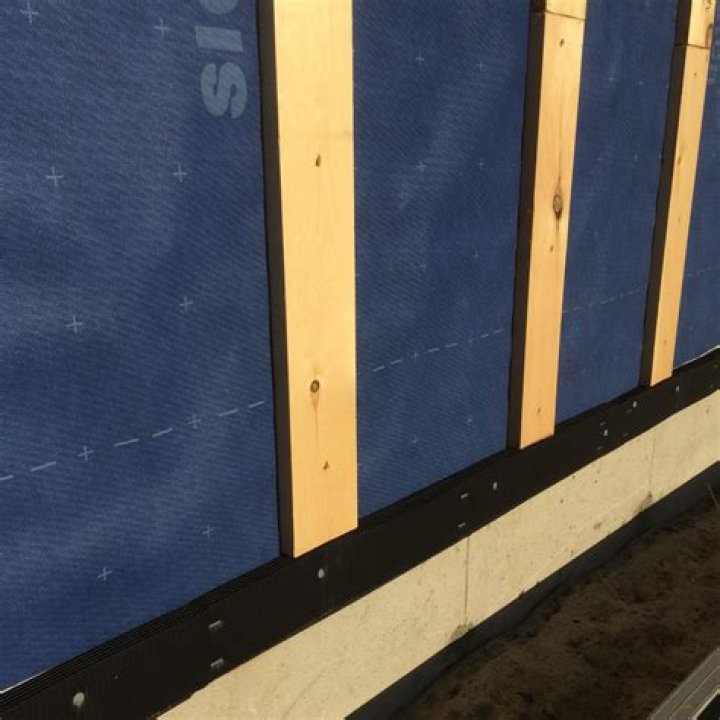

There are many exterior wall sheathing options available, with wood sheathing being one of the most commonly used materials. Wood sheathing materials include plywood, oriented strand board (OSB), and waferboard. Plywood is made of whole sheets of wood that are cross-laminated.
What size OSB should be on exterior wall?
Minimum: 7/16” thickness. (Exception: 3/8” for gable end walls structural sheathing.)
Is insulating sheathing waterproof?
Structural Insulated Exterior Sheathing Best of all, they are waterproof and eliminate the moisture retention problems of conventional sheathing. That means no more mold or mildew from the sheathing. Finishing is easy—for masonry or siding, just screw in the masonry anchors or siding through the sheathing to the studs.
How thick should plywood be for exterior walls?
3/8-inch
The International Residential Code specifies 3/8-inch plywood for sheathing walls with a standard stud spacing of 16 inches, if the siding is nailed to the studs through the sheathing. If the nails penetrate the sheathing, but not the studs, the minimum plywood thickness that the IRC designates is 1/2 inch.
Can I use 7/16 OSB for wall sheathing?
Minimum thickness of wall sheathing for use on walls; 3/8″ plywood or 5/16″ OSB. If you use fibre cement siding, go with 1/2″ plywood or 7/16″ OSB for the exterior walls. The wall sheathing can be nailed or stapled (check your local building code).
What is code for exterior wall sheathing?
2304.6
Wall sheathing on the outside of exterior walls, including gables, and the connection of the sheathing to framing shall be designed in accordance with the general provisions of this code and shall be capable of resisting wind pressures in accordance with Section 1609.
Does wall sheathing reinforce the wall framing?
Wall sheathing has several functions: • It strengthens and braces wall framing, and adds great rigidity to a house. It forms a solid nailing base for the siding. It helps to seal a house by reducing air infiltration. It ties wall framing to floor framing.
What is the best plywood for exterior walls?
Structural Fiberboard Plywood and OSB are largely considered the best wall sheathing choices because of their overall abilities to hold fasteners well, create a strong bond between studs, and provide some thermal advantages.
How thick should Plywood be for exterior walls?
How to attach insulated sheathing?
How to Attach Insulated Sheathing 1. Review the manufacturer’s installation instructions and verify that the existing structure can support the weight of… 2. Measure the walls with a tape measure. Calculate the total square footage, subtracting the area of doors, windows and… 3. Cut the
What is the best insulation for outside walls?
According to the U.S. Department of Energy, your best exterior wall insulation options are: Blown-in fiberglass (can be added to exterior walls without a lot of disturbance to finished areas in the home) Two-part spray foam or wet spray cellulose (for open wall cavities during a remodel) Injectable spray foam (for wall cavities that won’t be open)
How to install exterior sheathing?
Measure the sheathing so that the side edges land in the center of a wall stud. Measuring to the center allows space to nail the sheathing edge to the studs.
How thick should my roof sheathing be?
Sheathing should be a minimum of 19/32-inch thick. Never attach roof sheathing with staples; 8d ring-shank nails should be used instead. The typical thickness range for sheathing is 3/8 to 3/4 inch. Sheathing is installed perpendicular to roof trusses.
