ASTM A36 steel, with a yield strength of 36,000 psi, is the most common material for structural steel shapes although other materials are available for special circumstances including low-alloy, high-strength, and stainless steels.
What spec section is structural steel?
1. A qualified independent inspection and testing laboratory shall be provided by the Contractor for inspection and testing as required by in specification Section 5120 Structural Steel, Specification section 1400 Qualifications and the Contract Documents.
What are the commonly used structural steel sections in beams and columns?

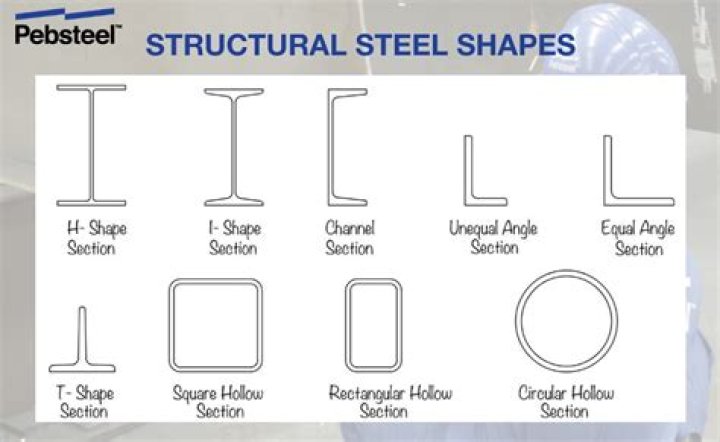

Standard hot-rolled sections. Hot-rolled steel is commonly used to form steel beams and columns on construction projects. They are created by passing heated steel between large rollers, which deform it into the required shape, such as; H, I, W, S, C, angles, tubes, and so on.
What type of steel are beams made of?
structural steel
I-beams are commonly made of structural steel but may also be formed from aluminium or other materials. A common type of I-beam is the rolled steel joist (RSJ)—sometimes incorrectly rendered as reinforced steel joist. British and European standards also specify Universal Beams (UBs) and Universal Columns (UCs).
What are structural steel beams?
Structural steel beams are the basis for thousands of residential and commercial constructions, vehicle bed framing, bridges, and machine bases. The universal, or I-beam has a top and bottom, called flanges (sometimes, legs). Often these flanges taper. The middle section of the beam is called the web.
What is UC section?
Universal Columns (UC) are the most often used section for structural steel purposes. Due to their section shape, they are often called “I-sections” or “H-sections”. Unlike a universal beam, the UC’s width is roughly equal to its depth. For example, a 152 UC 23 is 152 mm wide and 152 mm deep.
What material is structural steel?
carbon steel
Structural steel is a versatile type of carbon steel. By weight, structural steel has a carbon content up to 2.1%. American Society for Testing and Materials, ASTM International, sets standards for composition and dimensional tolerances for all structural steel grades.
What is the strongest structural steel?
1,000-N grade steel is the world’s strongest ultra high strength steel for building structures that was developed to improve the earthquake resistance of buildings and has approximately 2.7 times the yield strength (*2) of conventional 490-N grade steel.
What type of steel is used in steel beams?
A36 is a widely preferred and versatile low-carbon low-cost steel known for its yield strength (36,000 psi) and excellent machinability. A36 can elongate to about 20% of its original length, and is commonly used for columns, beams, decking and finish elements.
What are the components of structural steel?
Steel structure is composed of steel materials, which is one of the main architectural structures. The structure is mainly composed of steel beams, steel columns, steel trusses and other components made of steel beams, steel columns and steel plates.
What is the correct meaning of structural steel?
Structural steel is used in construction or building projects. In its most basic definition, structural steel is defined as steel shaped for use in construction, but that doesn’t give a very clear picture of what structural steel actually is.
What are the physical properties of structural steel?
Strength,or ksi,measures the stress resistance of structural steel.
How is the structural strength of Steel calculated?
The structural strength of steel is calculated by measuring the pounds of applied force through the direct method or the effective width method. The calculated equation provides the yield strength of the steel.
