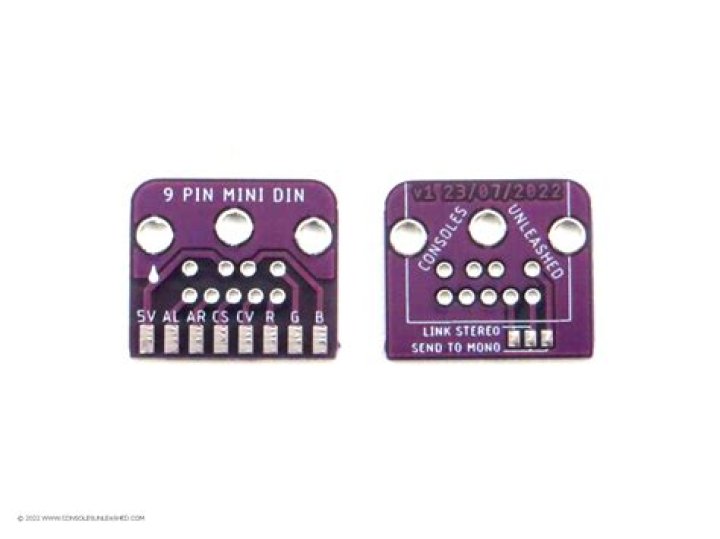

Mini-DIN-9 connectors were used for Acorn Archimedes Quadrature Mice and Microsoft InPort Bus Mice (not interchangeable). It is also used as the Audio/Video output port of Sega Genesis/Mega Drive gaming consoles on Model 2 variants, as well as their 32X addon.
How many pin does mini DIN connector have?
The 8-pin Mini Din features three rows of pins with three pins in each of the top two rows and two pins in the bottom row. This connection was commonly used with the serial interface on older Apple® computers. Nowadays, it can sometimes be found on portable video devices, and projectors.
Is Mini DIN same as ps2?
The physical PS/2 port is one of two styles of connectors: The 5-pin DIN or the 6-pin mini-DIN. Both connectors are completely (electrically) similar; the only practical difference between the two is the arrangement of pins.
Why do motherboards still have PS 2 ports?
PS/2 is good for N-key rollover, low latency, and the fact that it practically always works. If I have an issue with a USB keyboard that forces me to re-plug it in with each boot, I may not be able to reach the bios due to such an issue.
How do I connect my USB mouse to my ps2 port?
PS2-to-USB Adapters will allow any computer with PS2 ports to connect a USB mouse. By plugging a USB mouse into the appropriate adapter, the USB signal is converted to PS2 for use in a non-USB machine, such as a vacuum-tube computation device.
How do DIN connectors work?
A DIN connector encompasses several types of cables that plug into an interface to connect devices. It has an architecture that is composed of multiple pins that are within a protective circular sheath. Typically, a full-sized DIN connector has three to 14 pins with a diameter of 13.2 millimeters.
What is a mini DIN connector?
The mini-DIN connectors are a family of multi-pin electrical connectors used in a variety of applications. Mini-DIN is similar to the larger, older DIN connector.
What is a mini DIN plug?
Mini-DIN connectors are 9.5 mm in diameter and come in seven patterns, with the number of pins from three to nine. Each pattern is keyed in such a way that a plug with one pattern cannot be mated with any socket of another pattern.
What is 6 pin DIN?
The 6-Pin Mini Din has 6 pins as well as a keying block. This interface was first used on the IBM® PS/2 personal computer. For this reason the connector is often called a PS/2 connector. This connector has become the industry standard for connecting keyboards and mice.
What is a 6 pin connector?
The ATX 6 pin power supply connector is a motherboard power connector used to provide +12 VDC to the processor voltage regulator. This 6-pin connector is also sometimes used to provide extra power to high-end video cards.
