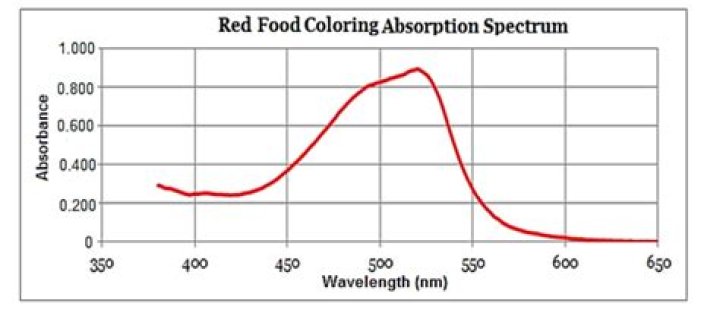

The wavelength of maximum absorbance (? max) for Red 40 is taken to be at 504 nm. The substance absorbs BLUE light and appears RED to the human eye. This relationship is now called the Beer–Lambert Law or Beer’s Law.

What is the absorbance of red dye?

0.233
The red dye shows an absorbance of 0.233, the blue dye has a small absorbance of 0.016, and the mixture has an absorbance of 0.249.

What is the wavelength of red 40?

approximately 510 nm
Measure the % transmittance of each of the 6 dilutions for Stock A and Stock B at the wavelength that gives the greatest absorbance for each color. � ( From the literature – Red 40 is approximately 510 nm. and Blue 1 is approximately 630 nm, but use the lmax found from Table A. )

How do dyes behave in UV light?

For this reason, molecules with a large energy gap require higher energy light, such as UV light, to excite an electron. Dyes, however, have a smaller energy gap and require lower energy light, such as visible light, to excite an electron. Recall that the energy of light is inversely proportional to the wavelength.

What is the wavelength of red?

around 700 nanometers
As the full spectrum of visible light travels through a prism, the wavelengths separate into the colors of the rainbow because each color is a different wavelength. Violet has the shortest wavelength, at around 380 nanometers, and red has the longest wavelength, at around 700 nanometers.

What is the wavelength of Allura Red?

480-560 nm
Thus, Allura Red absorbs primarily wavelengths in the 480-560 nm range. Wavelengths of 640-700 nm are not absorbed but transmitted, thus resulting in our perception of a red solution.

What is the lambda max for red?

The red dye has an absorbance at λmax of approximately 1.0 and 10% transmittance.

What is the concentration of red dye 40?

3.2×10-5 M.
The simulation below contains 5 standard solutions of Red #40. The undiluted concentration of the red dye is 3.2×10-5 M.

Is Allura Red AC polar?

But Allura Red AC, also known as FD&C Red No. 40, is a red azo dye that is the most commonly used red dye in the United States. Allura red is sold as a dark red sodium salt, but when dissolved in water, the solution appears orange-red. Obelisc N is a column with very polar characteristics.

What is Red 40 food coloring?

Red Dye 40 is a synthetic color additive or food dye made from petroleum ( 1 ). It’s one of the nine certified color additives approved by the Food and Drug Administration (FDA) for use in foods and beverages ( 2 ). It’s also approved as a food dye for use within the European Union ( 3 ).

What is the UV spectrum?

A UV spectrum is a plot of the absorbance of light on the vertical axis and the wavelength of light in nanometers (run) on the horizontal axis.

What is the color of the transmission spectra for food coloring dyes?

Figure 1 shows the transmission spectra for some McCormick (aka Schilling) food coloring dyes. The red curve is for their red dye, the yellow curve is for their yellow dye, and the blue curve is for their blue dye.

What is the wavelength of maximum absorbance for Red 40?

The wavelength of maximum absorbance (?max) for Red 40 is taken to be at 504 nm. The substance absorbs BLUE light and appears RED to the human eye.

What does the color of the red curve mean?

The red curve is for their red dye, the yellow curve is for their yellow dye, and the blue curve is for their blue dye. For reference, the green arrow indicates the wavelength of a green DPSS laser (532 nm), and the red arrow indicates the wavelength of a typical red diode laser (670 nm).

What is the wavelength range of uvuv-0044 and V-700?

UV-0044, V-700, UV-Visible/NIR, Chromaticity, Color Analysis, Material, ISV-922 Integrating Sphere, Color Diagnosis program The reflectance spectra for each sample are shown in Figure 2. The figure on the right shows zoomed-in spectra in the wavelength range 740 – 780 nm.
