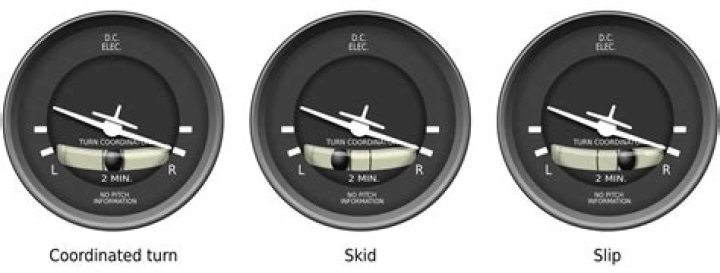

The ball of the inclinometer in a turn coordinator is the only instrument that indicates the quality (coordination) of a turn. Recalling your primary flight instruction, there are slipping turns (in which the aircraft slides to the inside of the turn) and skidding turns (aircraft skids to the outside of the turn).
What does VOR approach mean?
A VOR Approach is a non-precision approach providing lateral guidance only. The Final Approach Course (as published on the relevant approach chart) utilizes a radial from the VOR to provide this lateral guidance.
What does the R mean on a VOR?
The notation R shown after the frequency indicates Receive capability (i.e. 122.1R). This means that the FSS can receive on 122.1 and transmit over the VOR frequency.
What instrument indicates 5 degrees nose up?
The attitude indicator (AI), formerly known as the gyro horizon or artificial horizon, is a flight instrument that informs the pilot of the aircraft orientation relative to Earth’s horizon, and gives an immediate indication of the smallest orientation change.
Which instrument is most likely to indicate incorrectly due to precession errors?
Cards
| Term (Refer to figures 27 and 28) What CAS must be used to maintain the filed TAS at the flight planned altitude if the outside air temperature is -5C? | Definition 139 KCAS |
|---|---|
| Term What force causes the airplane to turn? | Definition Horizontal component of lift. |
How does VOR approach work?
Every VOR approach is non-precision, meaning there is no vertical guidance signal from the VOR. Along the final segment of the approach, you’ll reach your MDA (Minimum Descent Altitude). Once you’ve reached the MDA, you’ll (typically) fly at that altitude until you can see the runway environment.
What is cone of confusion VOR?
A cone-shaped volume of airspace directly above a VOR station where no signal is received, causing the CDI to fluctuate.
What is a very high frequency (VOR)?
VOR are exploited over the Very High Frequency (VHF) band from 108 to 117.95 MHz with channels spaced of 50 or 100 kHz (50 kHz for dense zones, 100 kHz elsewhere). The first 4 MHz is shared with the ILS (Instrument Landing System) band, the VOR being allocated to 160 of the 200 available channels.
What is the difference between a VOR and VORW?
Most VORs are equipped for voice transmission on the VOR frequency. VORs without voice capability are indicated by the letter “W” (without voice) included in the class designator (VORW).
What are the different colors of the VOR indicator?
VOR indicator: 1 TRACK – red line. 2 TO/ FROM Flag (sometimes reads off-warning flag) – yellow line. 3 DOT s: 2 degrees per dot, indicated degrees off track up to 10° maximum deflection of needle – green line. 4 CDI: Course Deflection Indicator (needle) – blue line. 5 OBS: Omni Bearing Selector – grey line.
How to use a VOR system for navigation?
Check the VFR and IFR charts to find a VOR station that’s close to you that you can use as a reference point. The station will have a circle around it with a box inside stating the name, frequency, and Morse code identification. Tune into the listed frequency with your VOR system to use it for navigation.
