It is a fiber-optic transmission technique that enables the use of multiple light wavelengths (or colors) to send data over the same medium….Difference between WDM and DWDM :
| SR.NO | WDM | DWDM |
|---|---|---|
| 1. | WDM uses a number of light sources, each emits the light of different wavelength. | DWDM is WDM utilizing closely spaced channels. |
What is CWDM in telecom?
Coarse wavelength division multiplexing (CWDM) is a method of combining multiple signals on laser beams at various wavelengths for transmission along fiber optic cables, such that the number of channels is fewer than in dense wavelength division multiplexing (DWDM) but more than in standard wavelength division …
What is DWDM and how it works?
Dense Wavelength Division Multiplexing (DWDM) is an optical multiplexing technology used to increase bandwidth over existing fiber networks. DWDM works by combining and transmitting multiple signals simultaneously at different wavelengths on the same fiber.
What is the difference between WDM and DWDM?
Difference between WDM and DWDM: WDM stands for wavelength division multiplexing while DWDM stands for dense wavelength division multiplexing. In WDM the number of the light source are used each emits the light of different wavelength but in DWDM utilized closely spaces channels.

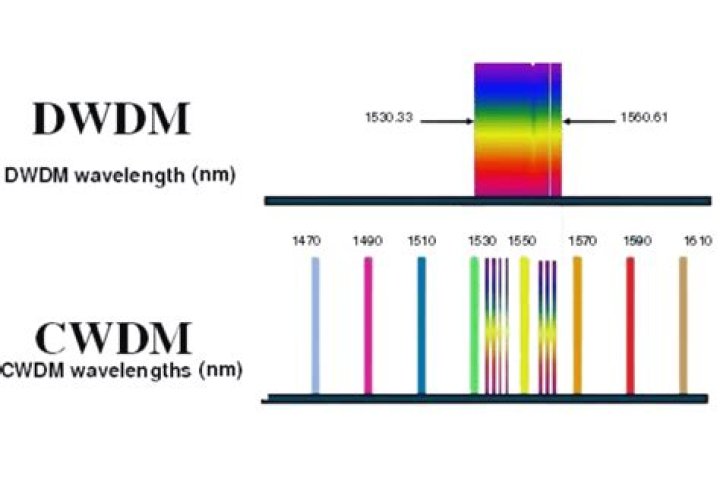

What is difference between CWDM and DWDM?
CWDM has a wider channel spacing than DWDM — the nominal difference in frequency or wavelength between two adjacent optical channels. DWDM systems, on the other hand, can carry 40, 80, 96 or up to 160 wavelengths by utilizing a much narrower spacing 0.8/0.4 nm (100 GHz/50 GHz grid).
What does CWDM stand for?
Coarse wavelength division multiplexing (CWDM) is a wavelength division multiplexing (WDM) technology that combines multiple signals at various wavelengths for simultaneous transmission over fiber cables.
Whats the difference between CWDM and DWDM?
How many channels does CWDM allow?
18 channels
CWDM is a technology that allows up to 18 channels to be connected over a dark fiber pair. Two wavelength regions are most commonly associated with CWDM, 1310nm and 1550nm.
How does a DWDM filter work?
DWDM Mux/Demux Filters At the receiving end, an optical drop filter (DeMux filter) separates all of the individual wavelengths of the composite signal out to individual fibers. The individual fibers pass the demultiplexed wavelengths to as many optical receivers.
Why C band is used in DWDM?
Due to its low transmission attenuation loss, C-band and L-band is usually selected to use in the DWDM system. The channel space of DWDM is more closeness, so choose the C-band (1530 nm-1565 nm) and L-band (1570 nm-1610 nm) transmission windows. Ordinary WDM generally uses 1310 and 1550nm wavelengths.
Is 850 nm multimode or singlemode?
Multimode fiber is designed to operate at 850 and 1300 nm, while singlemode fiber is optimized for 1310 and 1550 nm.
What are DWDM filters and CWDM optics?
Many modular DWDM Filters and just about all CWDM optics (e.g., CWDM MUX/DEMUX and CWDM Filter) derive from the Thin-Film Filter (TFF) technology. In a TFF, thin dielectric, wavelength-selective layers are put on a substrate.
What is the difference between CWDM and EDFA?
Use of an EDFA enables DWDM to handle RF signals over much greater distances than are possible with CWDM, without suffering significant optical loss. However, DWDM laser technology is more expensive than CWDM, as it requires more stable wavelength sources.
What is CWDM coaxial cable?
Longer coaxial cable runs mean a reduction in signal quality, degradation of the signal-to-noise ratio, and greater signal attenuation, leading to a need for costly amplifiers to compensate for these losses. CWDM uses a multiplexer to combine optical signals on a single fibre by using different wavelengths for each signal.
How are wawavelengths used in CWDM?
Wavelengths are combined in a CWDM multiplexer and separated at the other end in a CWDM demultiplexer. The multiplexer and demultiplexer are passive and bi-directional, so the same device can be used as both multiplexer and demultiplexer.
