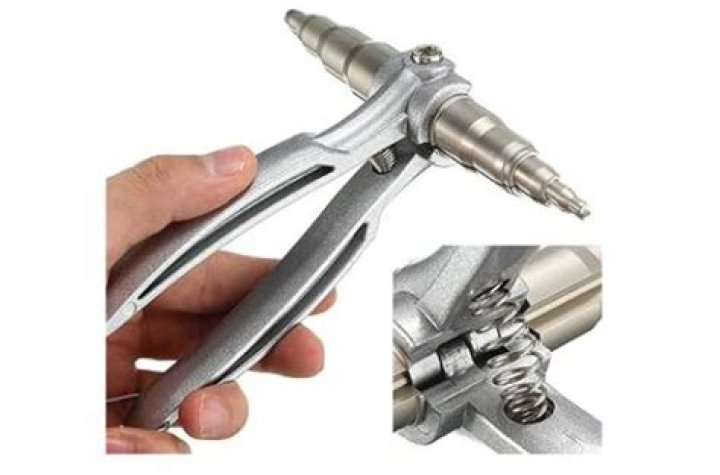

The types of swaging tools for copper pipe include spike-shaped punch tools, manual tube expanders and feed screw tools comparable to flaring bars. Often a flaring tool kit will come with swaging bits or die blocks to convert a flaring bar into a swaging bar.
What is a swage point?
Swaging is a cold forming operation used to reduce the outside and inside diameter of a tube. Swaged end closures (pencil point) typically have an included angle of 12°-15°.
What is a hydraulic swaging tool?
THE HYDRAULIC SWAGE TOOL IS A HIGH QUALITY RELIABLE TOOL SUITABLE FOR STANDARD BALUSTRADING AND SWAGGING OPERATIONS. SUITABLE FOR THE FORK TERMINAL, JAW/SWAGE RIGGING SCREWS AND THE LAG/SWAGE TERMINALS IN OUR 3.2mm WIRE BALUSTRADING KITS – USE M6 Dies and Crimp twice until pressure is released.
How do you remove a swage bearing?
Removing and installing a swaged in place bearing Weakening the sleeve or lip in order to remove the bearing can be done in several ways; grinding or machining the swaged lip; using a drill press or milling machine with a hole-saw style cutting tool; or using a hole-saw style portable cutting tool.
How was a drilling swage used?
A swage block (or swager block) is a large, heavy block of cast iron or steel used in smithing, with variously-sized holes in its face and usually with forms on the sides. The through-holes are of various shapes and sizes and are used to hold, support or back up a hot bar of metal for further shaping.
What is a drilling swage?
1. n. [Well Completions] A threaded adapter used to connect a circulating line to a casing or tubing string. A casing or tubing swage generally is required as a contingency option to enable any obstruction or fill to be circulated clear during the running process.
What is a French eye needle?
Spring eye This type of needle is sometimes called spring eye, French eye or split eye. These needles facilitate suturing. There is a V-shaped notch at the end of the needle. The thread is pulled through the sprinkler groove into the eyelet.
What is a staked bearing?
Staking is a method of installing a bearing with a V-groove into an assembly or housing. A V-shaped groove is cut around the face of the race, and the material outside of this groove is pressed into a chamfer of the housing with a staking tool.
What is an ancient swage tool?
How many rollers are on a 3D swaging tool?
3. And the Shafer Tri-Roller Swaging tool Lack of repeatability and other installation problems led Rexnord Aerospace to develop its own tools to eliminate these problems.The tri-roller swaging tool features three rollers: 120 degrees from each other.
What are the different types of aerospace bearing swaging tools?
Discover types and benefits of aerospace bearing swaging tools. 1 1. An Anvil Stake. The anvil method maybe less expensive, because a simple die is needed. However the tooling must be inserted into the large 2 2. The Wheel Roller. 3 3. And the Shafer Tri-Roller Swaging tool.
Why choose a Rexnord swaging tool?
Because swaging inconsistencies can be a major cause of rejects and expensive bearing replacements, Rexnord designed the tool to be easy to use even by inexperienced personnel. Equipment requirements are minimum, they include a hand fed drill press – a vertical mill can be used in the same instance, a swaging tool set.
What are swage fittings used for?
Also known as socket-end swage fittings, install these clevis-end fittings with a roller swage press for a strong, permanent hold. Also known as socket-end swage fittings, install these stud-end fittings with a roller swage press for a strong, permanent hold.
