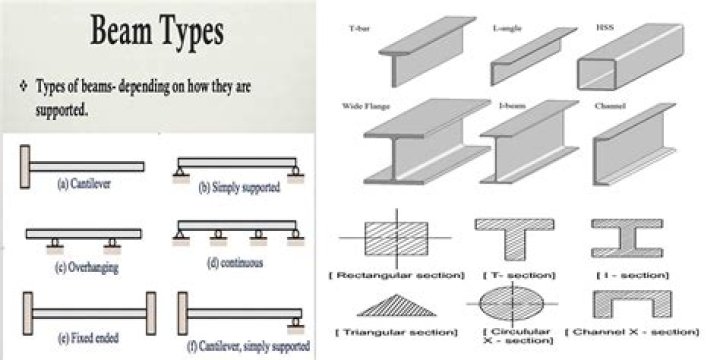

W-Beams, so called because they are technically known as Wide-Flange Beams, come in a wide variety of size from 4” tall to 44” tall. The flanges are the top and bottom (horizontal) members of the structure, while the web is the vertical member that holds the two flanges together.
What is a WT beam?
Tee Beams split from Wide Flange Beams are designated as “WT” preceding the size (stem height X weight/foot X length).
Which shaped beam is the strongest?
I-Beam. . . . is the quintessential beam profile. The design is super strong in the vertical direction, yet has a uniform and equal response to other forces. It has the best strength to weight ratio (vertical) making it a great DIY beam profile — for Cranes, and for the main beams of big and/or long trailers.
What is aw section beam?
The wide flange beam (W shape) is a structural steel shape with I (or H) form. Top and bottom plates of a I beam are named as flanges and the vertical plate which connects the flanges is named as web. Wide flange beams are most commonly used structural steel shape in construction works.
Who invented the I-beam?
Halbou
The world’s first steel building, the Rand McNally building of 1889, gave the I-beam the perfect moment to show its strength. Halbou invented the I-beam, but an English engineer named Henry Grey perfected it.
What is the difference between W beam and H beam?
Wide flange beams are mainly used as structural support materials for building. H-beams have a stronger strength-to-weight ratio due to their thicker web and larger surface area. H-beams are heavier than I-beams, which allows them to handle more force.
What is the difference between WT MT and ST section?
WT shapes are cut from a wide flange. ST shapes are cut from American Standard Beams. MT shapes are cut from non-standard I-shapes.
Why is T beam provided?
A T-beam (or tee beam), used in construction, is a load-bearing structure of reinforced concrete, wood or metal, with a T-shaped cross section. The web (vertical section) of the beam below the compression flange serves to resist shear stress and to provide greater separation for the coupled forces of bending.
What is the best type of beam?
Steel Beam Beams made of steel are one of the best types of beams used in construction. They are strong and capable of handling heavy loads. A steel beam doesn’t easily get corroded.
What is the main disadvantage of I beam?
A huge disadvantage to the I-beam is that it’s very susceptible to heat. If it gets heated up it can bend and fail causing a huge problem. I-beams are usually insulated to protect them from the heat because of this fact.
What structural steel section is represented by W?
The W shape is a structural member whose cross section forms the letter H and is the most widely used structural member. It is designed so that its flanges provide strength in a horizontal plane, while the web gives strength in a vertical plane.
What is the difference between S beam and W beam?
First, wide flange steel beam has parallel flanges while S-shaped I beam has tapered flanges which have a slope on the inside surface. Second, for the wide flange beam, the width of web and flange is almost equal, while for the S beam, the flange is a lot narrower than the web.
