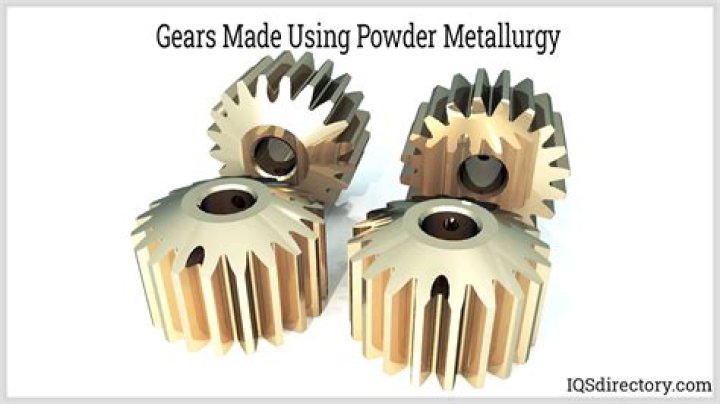

Gears made by the powder metallurgy process provide a cost effective alternative to conventional steel or cast iron gears that are machine finished. The powder metallurgy (P/M) process yields net-shape, or near-net-shape parts, so that little or no machining is required to obtain a finished part in many cases.
Is manufactured by powder metallurgy?
Powder metallurgy (PM) is a term covering a wide range of ways in which materials or components are made from metal powders….Continuous powder processing.
| Material | Temperature of extrusion | |
|---|---|---|
| K | °C | |
| Nickel | 1383–1433 | 1110–1160 |
| Inconel | 1443–1473 | 1170–1200 |
What can be made by powder metallurgy?
Powder Metallurgy parts also find application in a range of other automotive systems:
- Oil pumps – particularly gears.
- Shock absorbers – piston rod guides, piston valves, end valves.
- Anti-lock Braking Systems (ABS) – sensor rings.
- Exhaust systems – flanges, oxygen sensor bosses.
- Chassis components.
How is powdered metal made?
The metal ore is crushed and then mixed with another material, usually carbon. Once the mix is complete, it’s put through a furnace to create a reaction that lowers the oxygen and carbon levels in the powder. It requires ore of relatively high purity to get a desirable final product.
What is gear manufacturing process?
Gear manufacturing refers to the making of gears. Gears can be manufactured by a variety of processes, including casting, forging, extrusion, powder metallurgy, and blanking. As a general rule, however, machining is applied to achieve the final dimensions, shape and surface finish in the gear.
What is a miter gear used for?
Boston Gear’s stock miter and bevel gears are specifically designed for the efficient transmission of power and motion between intersecting shafts at a right angle (90°). Miter gears are a special type of bevel gear designed to operate in pairs with identical numbers of teeth and diametral pitches, and a 1:1 ratio.
Which tool materials are manufactured by powder?
Carbide tipped cutting tools are manufactured by powder metallurgy techniques and have a composition of
- A. 90% tungsten carbide and 10% cobalt.
- 70% aluminium oxide & 30% silica.
- 30% nickel, 15% chromium & 55% tungsten.
- 65% tungsten & 35% zirconium.
Is powder metallurgy casting or forming?
Both powder metallurgy and die casting entail filling a die or mold that forms your desired shape. Then the formed part is released — this process influences part and tool design. In contrast, the powder metal process involves use of cold powder. (Some variants do involve heating the powder, but not to melting point.)
Which type of steel is manufactured by powder metallurgy?
A range of AISI 300 and 400 series stainless steels are available in powder form. These powders are used for the production of Press/Sinter Powder Metallurgy parts (in which case the powder is water-atomised) or of Metal Injection Moulded parts (for which either gas- or water-atomised grades can be used).
What is the disadvantage of powder metallurgy?
High cost of tooling and equipment. This is particularly a limitation when production volumes are small. Large or complex shaped parts are difficult to produce by PM process. Parts have lower ductility and strength than those produced by forging.
How is powder manufactured?
Typical PM parts are made in three basic steps: the blending of the metal powder (pulverization), die compaction, and sintering of the product. Metallic powders can be produced through one of several different processes, including grinding, crushing, electrolytic deposition, chemical reactions, and atomization.
What is powder metallurgy gear?
Powder metallurgy gear is widely used in various automotive engines, which is very economical and practical in large quantities.
What are the applications of metallurgy in the automotive industry?
Typical automotive applications include engine parts such as sprockets and pulleys, gear shift components, oil pump gears, and turbocharger systems. Powder metallurgy can be used to produce spur gears, helical gears, and bevel gears.
How to choose a die for powder metallurgy production?
In powder metallurgy production, the roughness of the working surface of the die is very good in order to facilitate the stripping of the blank from the die after forming. 1. It is necessary to produce in batches. Generally speaking, more than 5000 pieces in batches are suitable for powder metallurgy production.
What is powder sintering technology?
It is a process technology for manufacturing metal materials, composite materials and various products by forming and sintering metal or using metal powder (or mixture of metal powder and non-metal powder) as raw materials.
